Rear Console Disassembly/Assembly
>>
Side Panel Removal Note
Side Panel Removal Note

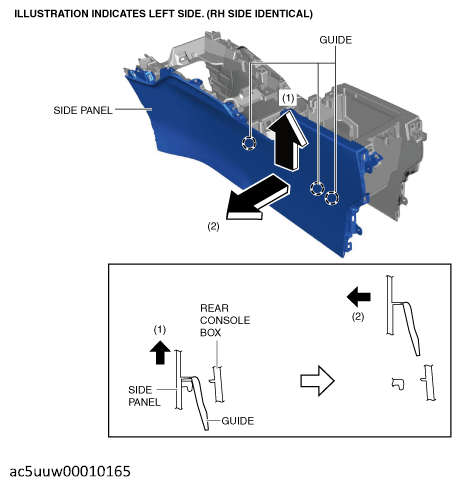

Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
