USB Port Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Shift lever knob (MTX)
2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
7. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
9. Rear console
10. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
11. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
12. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
13. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
14. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
15. Driver-side knee air bag module
16. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
17. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)

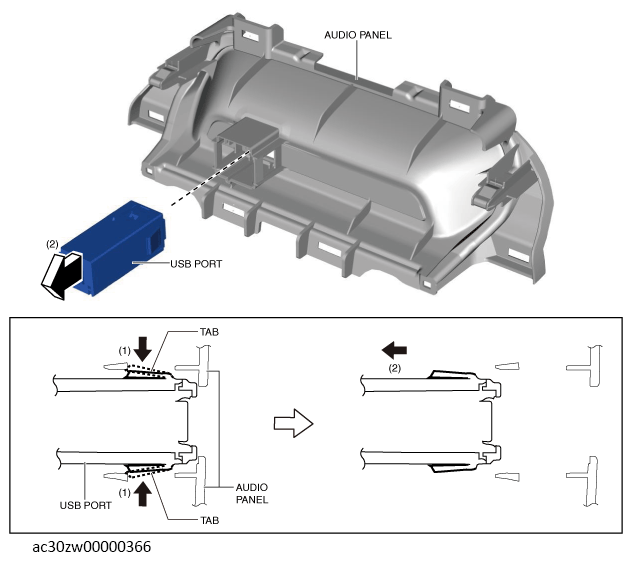

While pressing the tabs of the USB port in the direction of arrows (1) shown in the illustration, move the USB port in the direction of arrow (2) and detach the tabs of the USB port from the audio panel.

Courtesy of MAZDA MOTORS CORP.
Remove the USB port.
Install in the reverse order of removal.
