Front Scuff Plate Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

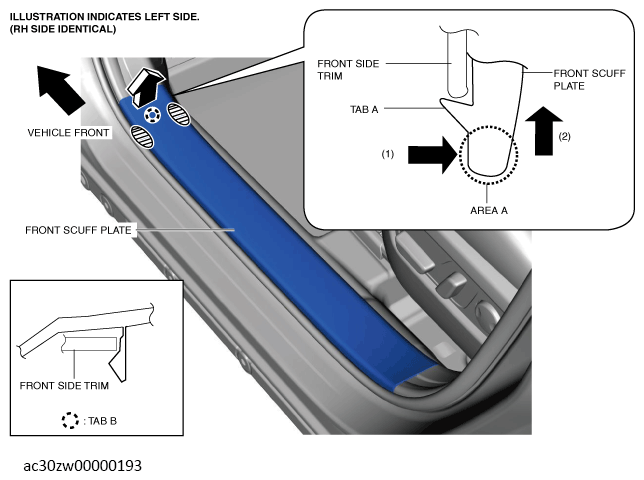

- Hold area A shown in the illustration, open the front scuff plate in the direction of arrow (1), and detach tab A of the front scuff plate from the front side trim while moving it in the direction of arrow (2).
- Hold the shaded areas shown in the illustration and detach tab B of the front scuff plate from the front side trim while moving the front scuff plate in the direction of arrow (3).

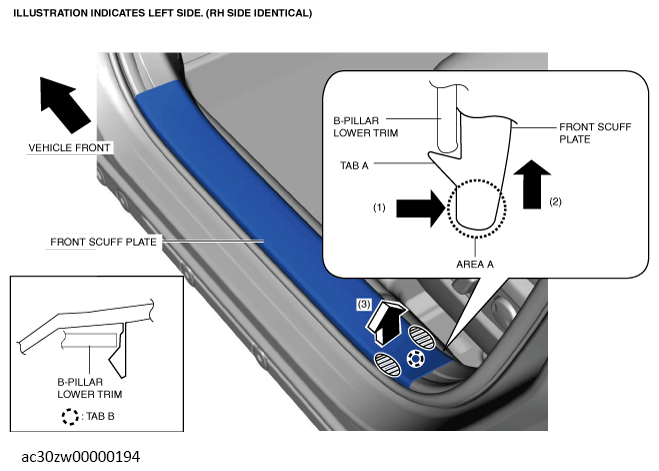

- Hold area A shown in the illustration, open the front scuff plate in the direction of arrow (1), and detach tab A of the front scuff plate from the B-pillar lower trim while moving it in the direction of arrow (2).
- Hold the shaded areas shown in the illustration and detach tab B of the front scuff plate from the B-pillar lower trim while moving the front scuff plate in the direction of arrow (3).

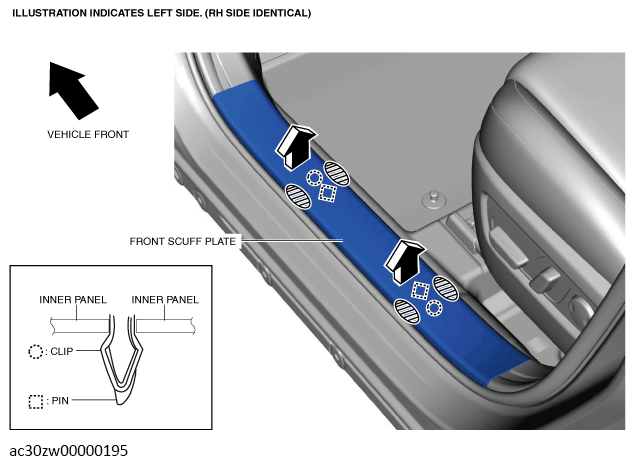

- Hold the shaded areas shown in the illustration and detach the clip from the inner panel while moving the front scuff plate in the direction of arrow (1).
- Hold the shaded areas shown in the illustration and detach the clip from the inner panel while moving the front scuff plate in the direction of arrow (2).
- Pull out the pins and remove the front scuff plate.
- Install in the reverse order of removal.
