Foot Support Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following parts:
- Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Partially peel back the floor covering.

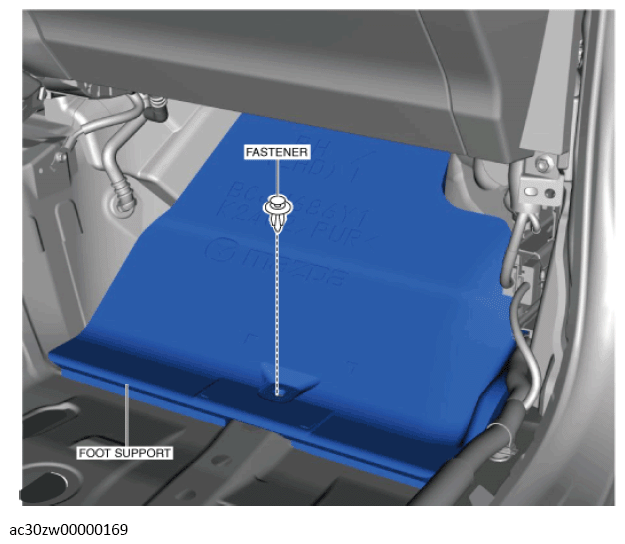

- Remove the fastener.

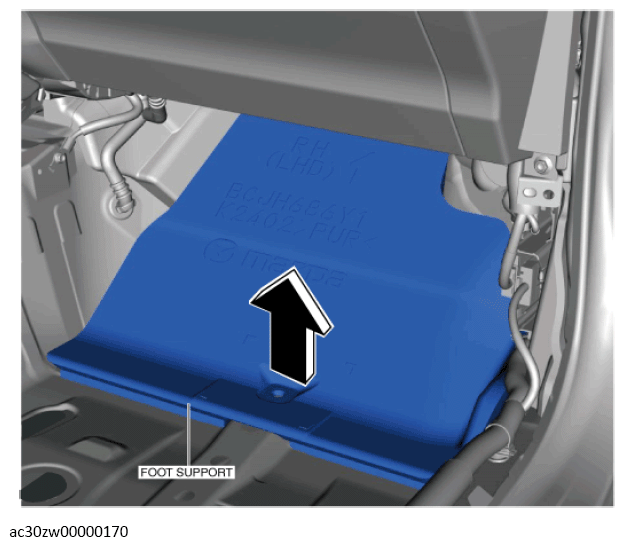

- Remove the foot support in the direction of the arrow shown in the illustration.
- Install in the reverse order of removal.
