Driver-Side Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
4. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.
Remove the bolt.

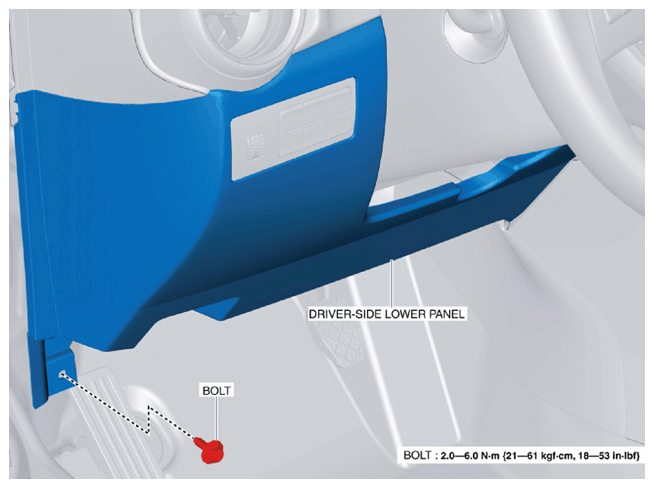

Fig 1: Identifying Driver-Side Lower Panel And Bolt With Torque Specification
Courtesy of ABLE BODY CORP.
Move the driver-side lower panel in the order of arrows (1), (2), and (3) shown in the figure, and detach clips A and B, and the hooks.

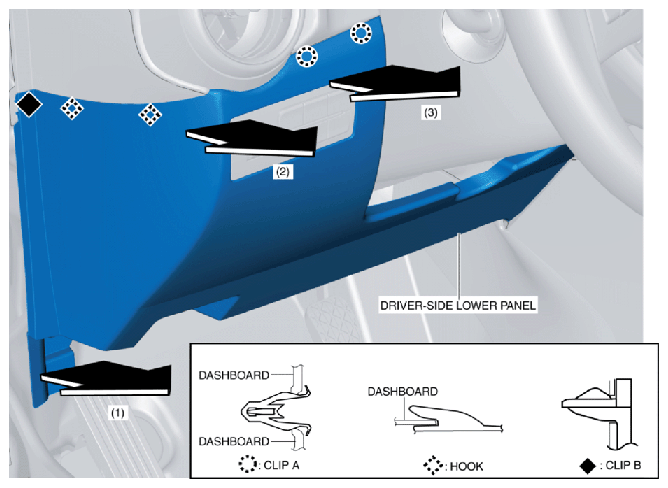

Fig 2: Moving Driver-Side Lower Panel With Clips A, B And Hooks
Courtesy of ABLE BODY CORP.
Move the driver-side lower panel in the order of arrows (1) and (2) shown in the figure, and detach clips A and B, and the guide.

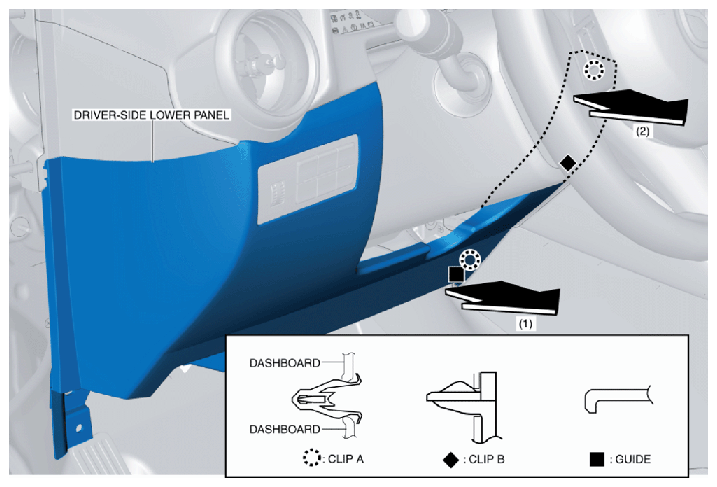

Fig 3: Moving Driver-Side Lower Panel With Clips A, B And Guide
Courtesy of ABLE BODY CORP.
Disconnect the cluster switch connector.

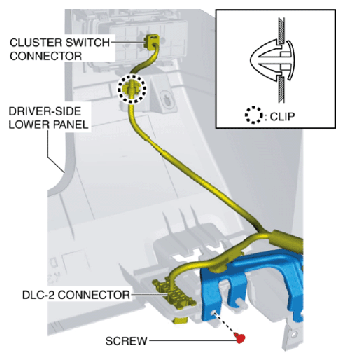

Fig 4: Identifying Cluster Switch Connector, Driver-Side Lower Panel, DLC-2 Connector, Screw And Clip
Courtesy of ABLE BODY CORP.
Remove the clip.
Remove the DLC-2 connector.
Remove the screw.
Remove the bracket.

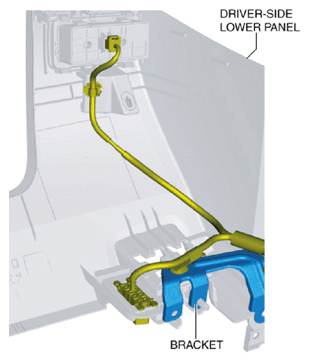

Fig 5: Identifying Driver-Side Lower Panel And Bracket
Courtesy of ABLE BODY CORP.
Remove the driver-side lower panel.
Remove the cluster switch when replacing the driver-side lower panel. (Refer to CLUSTER SWITCH REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
