Cluster Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    4. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

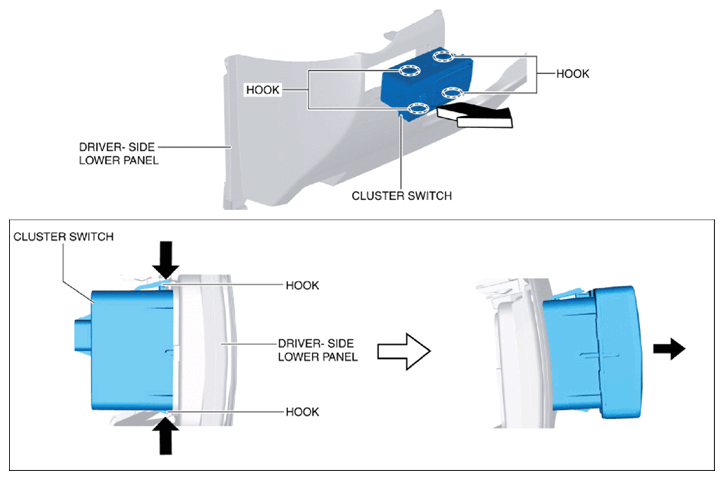

  3. While pressing the hooks in the directions of the arrows shown in the figure, remove the cluster switch from the driver-side lower panel.
    Fig 1: Removing Cluster Switch From Driver-Side Lower Panel
    G10914718Courtesy of ABLE BODY CORP.
  4. Install in the reverse order of removal.
