Trunk Box Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)

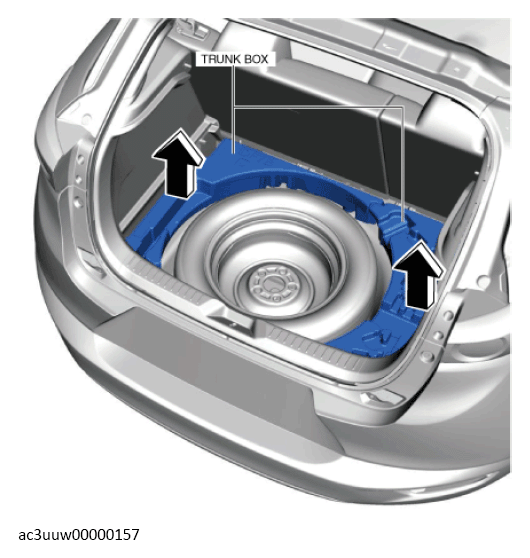

  3. Remove the trunk box in the direction of the arrows shown in the figure.
    G13152914Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
