Bass-Box Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)

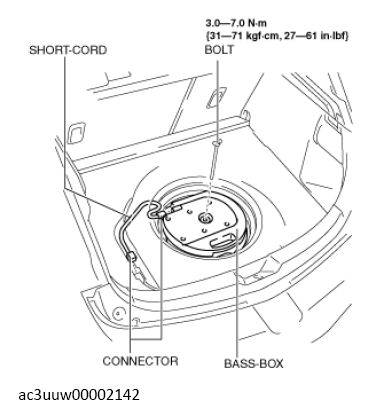

  3. Disconnect the connector.
    G13153240Courtesy of MAZDA MOTORS CORP.
  4. Remove the short-cord.
  5. Remove the bolt.
  6. Remove the bass-box.
  7. Install in the reverse order of removal.
