Front Combination Light Disassembly/Assembly: Notes
- Disassemble in the order shown in the figure.

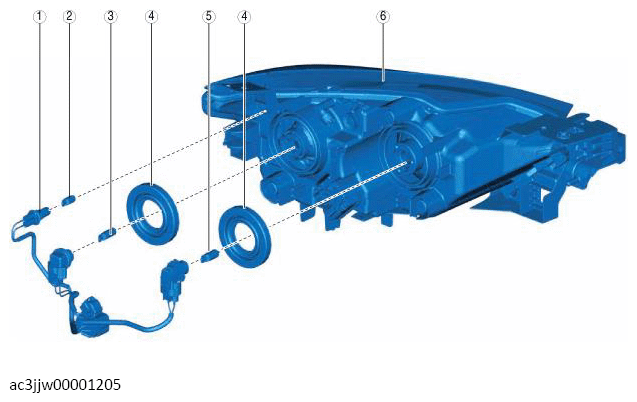

Front combination light (bulb type)
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Front side marker light bulb
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)3 Headlight LO bulb
(See HEADLIGHT BULB REMOVAL/INSTALLATION .)4 Cover
(See Cover Installation Note .)5 Headlight HI bulb

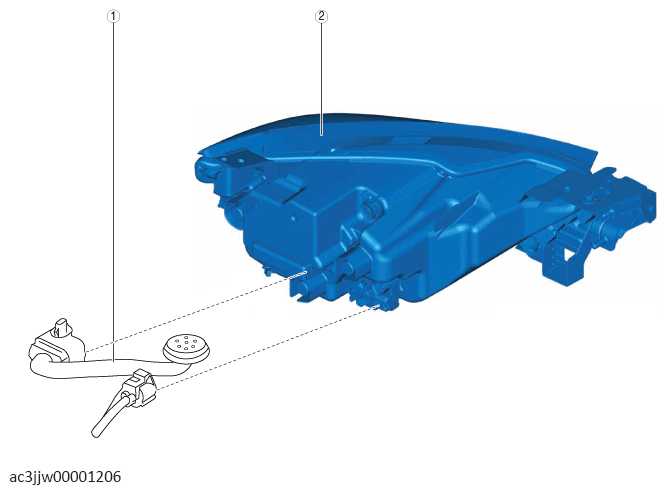

(See HEADLIGHT BULB REMOVAL/INSTALLATION .)6 Front combination light Front combination light (LED type)
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note .)2 Front combination light - Assemble in the reverse order of disassembly.
