Cover Installation Note

CAUTION:
  • If there is a gap between the housing and the cover, water may penetrate through the gap, causing an electrical shock, short circuit, fogging or condensation inside the front combination light. Verify that there is no gap between the cover and the housing.

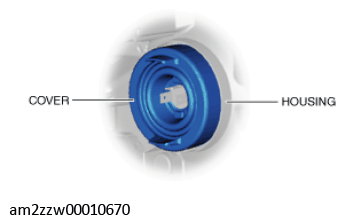

  1. Install the cover to the housing so that there is no gap between the housing and the cover.
G11449663Courtesy of MAZDA MOTORS CORP.
