Passenger Compartment Temperature Sensor Removal/Installation (Auto A/C)

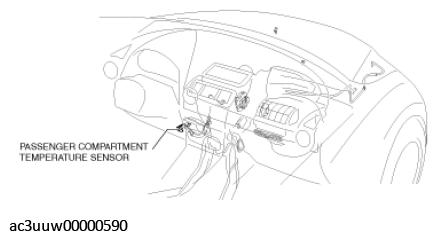

Installation position

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
   2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
   3. Fuel filer lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
   4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
   5. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

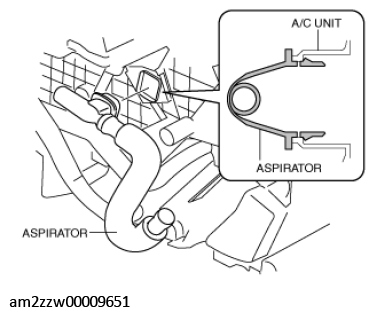

3. Disconnect the aspirator from the passenger compartment temperature sensor.

   Courtesy of MAZDA MOTORS CORP.

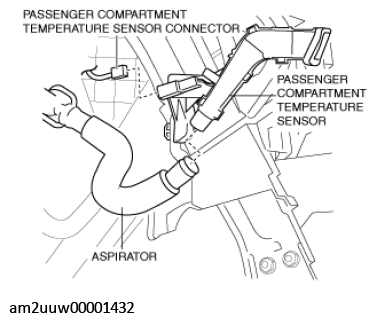

4. Disconnect the passenger compartment temperature sensor connector.

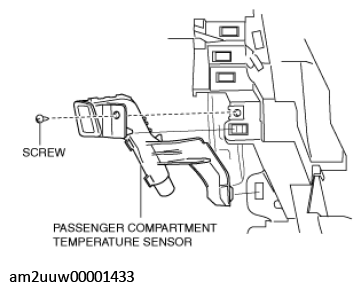

5. Remove the screw.

   Courtesy of MAZDA MOTORS CORP.

6. Remove the passenger compartment temperature sensor.
7. Remove the aspirator.

   Courtesy of MAZDA MOTORS CORP.

8. Install in the reverse order of removal.
