Airflow Mode Actuator Removal/Installation (Auto A/C): Notes

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

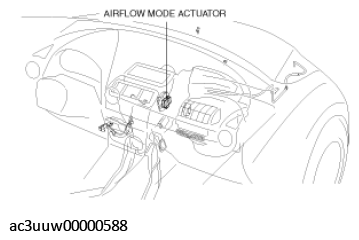

Installation position

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

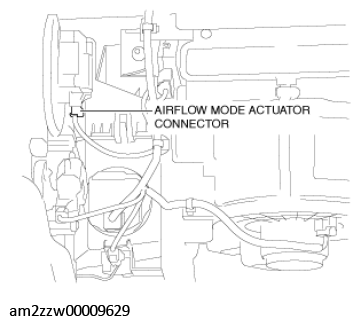

Disconnect the airflow mode actuator connector.

Courtesy of MAZDA MOTORS CORP.

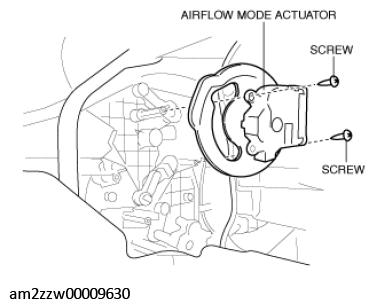

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the airflow mode actuator.

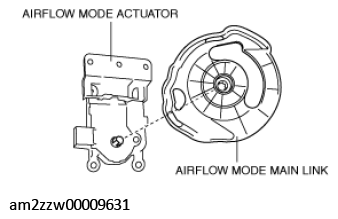

Remove the airflow mode main link.

Courtesy of MAZDA MOTORS CORP.

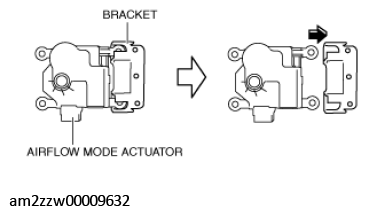

Remove the bracket.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See AIRFLOW MODE MAIN LINK INSTALLATION NOTE .)
