Manual Air Conditioner

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

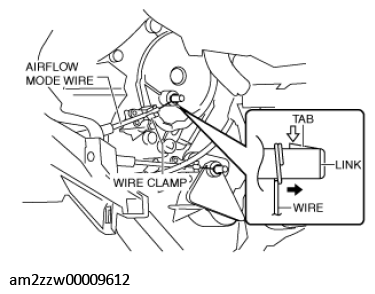

  3. Press the tab down, then slide the airflow mode wire off the link.
    G11431282Courtesy of MAZDA MOTORS CORP.
  4. Remove the airflow mode wire from the wire clamp.

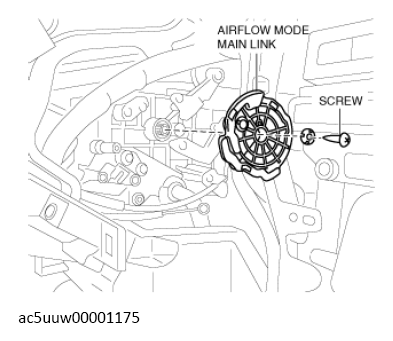

  5. Remove the screw, then airflow mode main link.
    G13150933Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
