Front Side

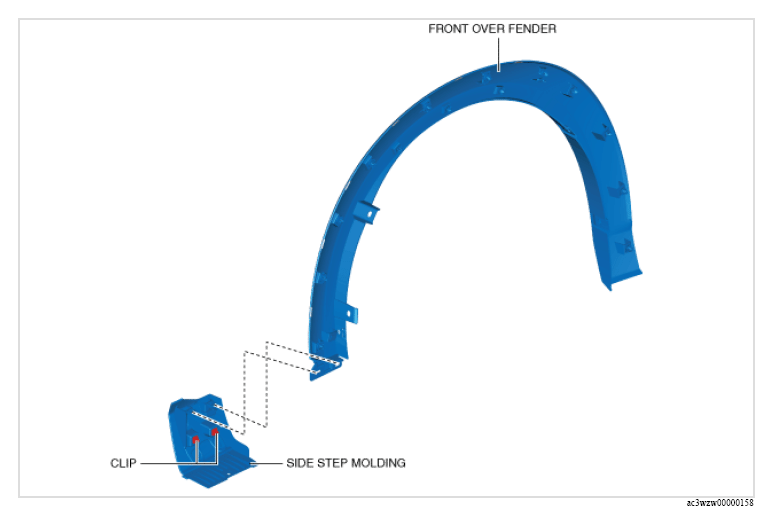

  1. Install the clips to the side step molding.
    G13152708Courtesy of MAZDA MOTORS CORP.
  2. Install the side step molding to the front over fender.
  3. Install the following parts:
    1. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
    2. Front mudguard (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
    3. Front deflector (See FRONT DEFLECTOR REMOVAL/INSTALLATION .)
