Front Deflector Removal/Installation

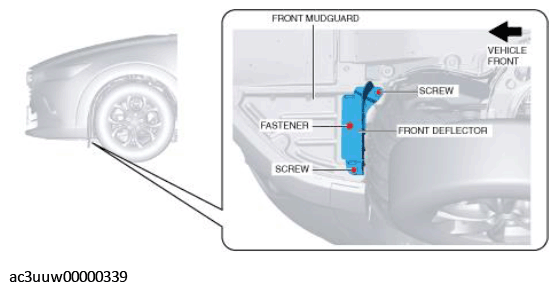

  1. Remove the screws and fastener.
    G11434108Courtesy of MAZDA MOTORS CORP.

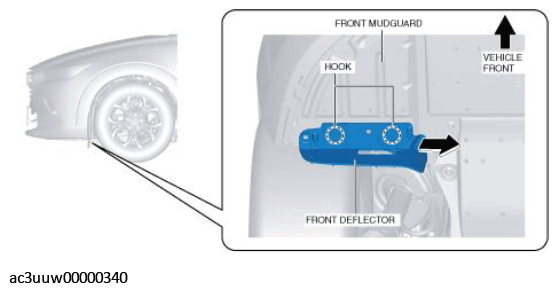

  2. Move the front deflector in the direction of the arrow shown in the figure and remove the front deflector from the front mudguard while detaching the hooks.
    G11434109Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
