Front Door Lock-Link Switch Inspection

1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
3. Remove the following parts:
   1. Power window main switch (Driver's side)/Power window subswitch (Passenger's side) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
   2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
   3. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
   4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
   5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
   6. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
   7. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

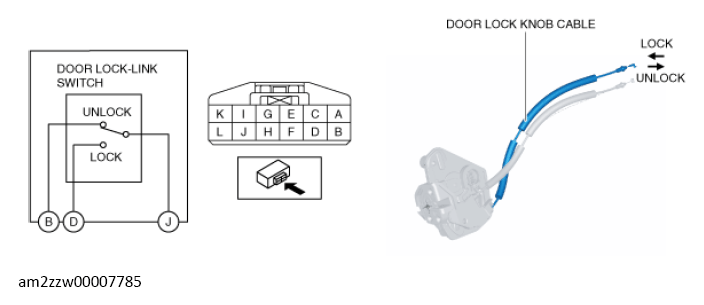

4. When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
