Front Door Trim Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window main switch (driver-seat) or the power window subswitch (front passenger-seat). (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

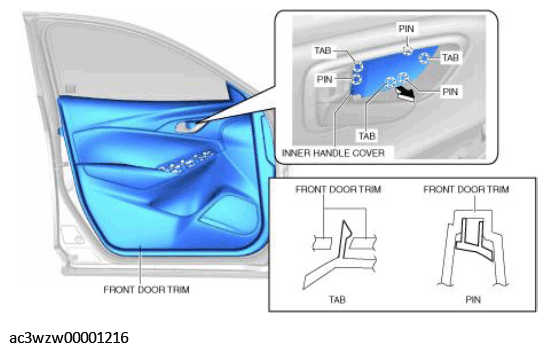

  3. Remove the inner handle cover while detach the tabs, pins.
    G11434521Courtesy of MAZDA MOTORS CORP.

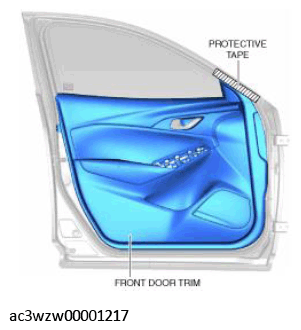

  4. Affix protective tape to the shaded position shown in the figure.
    G11434522Courtesy of MAZDA MOTORS CORP.

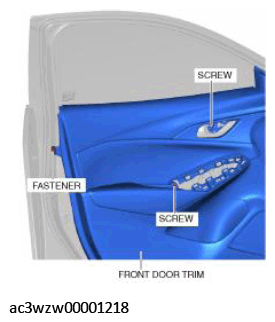

  5. Remove the fastener and screws.
    G11434523Courtesy of MAZDA MOTORS CORP.

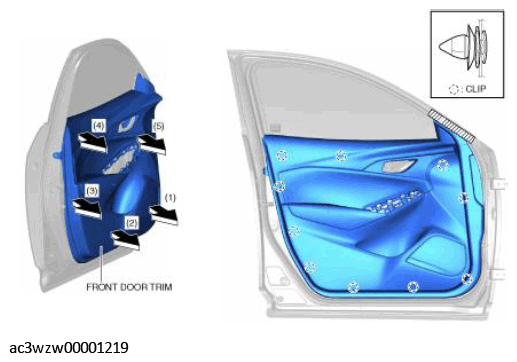

  6. Pull the front door trim in the order of the arrows shown in the figure and remove the clips.
    G11434524Courtesy of MAZDA MOTORS CORP.

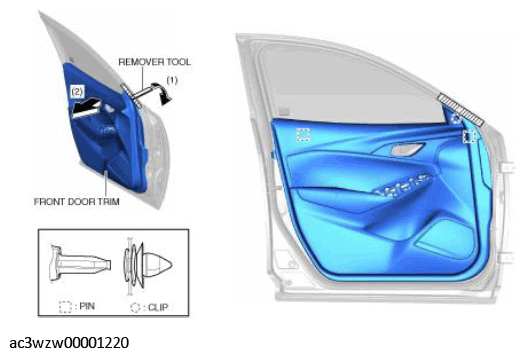

  7. Insert the remover tool into the position shown in the figure, move it in the direction of arrow (1), and detach the clip.
    G11434525Courtesy of MAZDA MOTORS CORP.
  8. Pull the pins out of the front door in the direction of arrow (2) shown in the figure and remove the front door trim.
  9. Install in the reverse order of removal.
