Interior Trim Location Index

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

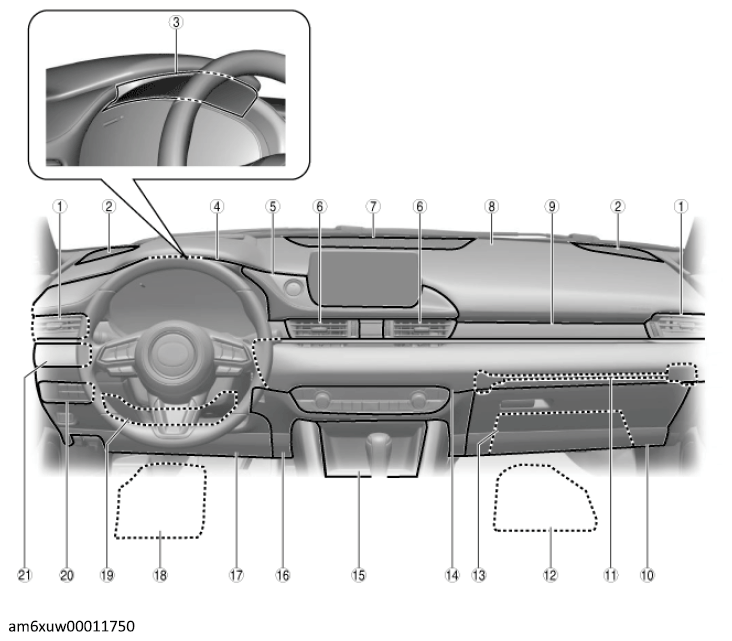

Fig 1: Interior Trim Component Location (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
2	Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
3	Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION .)
4	Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
5	Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
6	Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
7	Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
8	Dashboard (See DASHBOARD REMOVAL/INSTALLATION .) (See DASHBOARD DISASSEMBLY/ASSEMBLY .)
9	Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
10	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
11	Passenger-side knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
12	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION .)
13	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
14	Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
15	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
16	Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
17	Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
18	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION .)
19	Driver-side knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
20	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
21	Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)

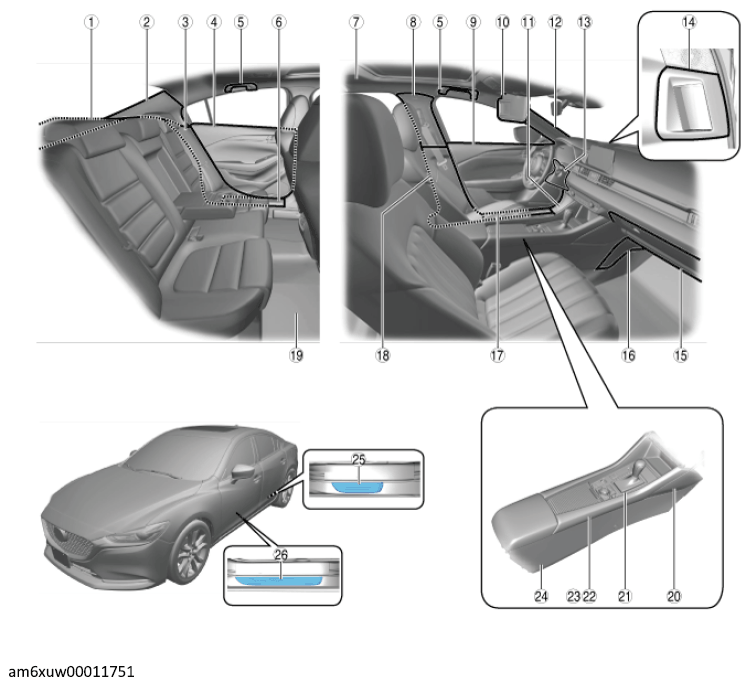

Fig 2: Interior Trim Component Location (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
2	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3	Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION )
4	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
5	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6	Rear scuff plate (inner) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7	Headliner (See HEADLINER REMOVAL/INSTALLATION .)
8	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
9	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
10	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
11	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
12	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
13	Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
14	Meter hood No. 2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION .)
15	Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
16	Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17	Front scuff plate (inner) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
18	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
19	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION .)
20	Console side panel No. 1 (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
21	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
22	Console side panel No. 2 (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
23	Upper panel component (See UPPER PANEL REMOVAL/INSTALLATION .) (See UPPER PANEL DISASSEMBLY/ASSEMBLY .)
24	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .) (See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
25	Rear scuff plate (outer) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
26	Front scuff plat (outer) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

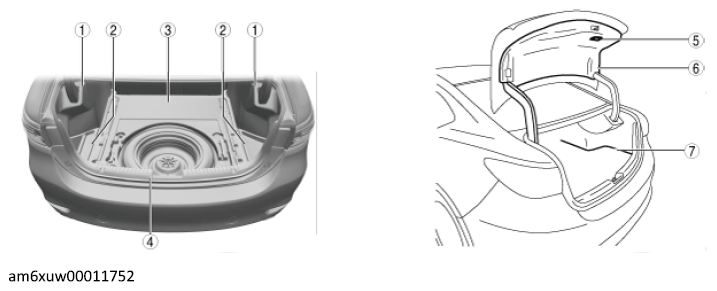

Fig 3: Interior Trim Component Location (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
2	Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
3	Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
4	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
5	Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
6	Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
7	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
