Antenna Feeder Removal/Installation: Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Affix tape shown in the figure below and install antenna feeder.
Without sunroof

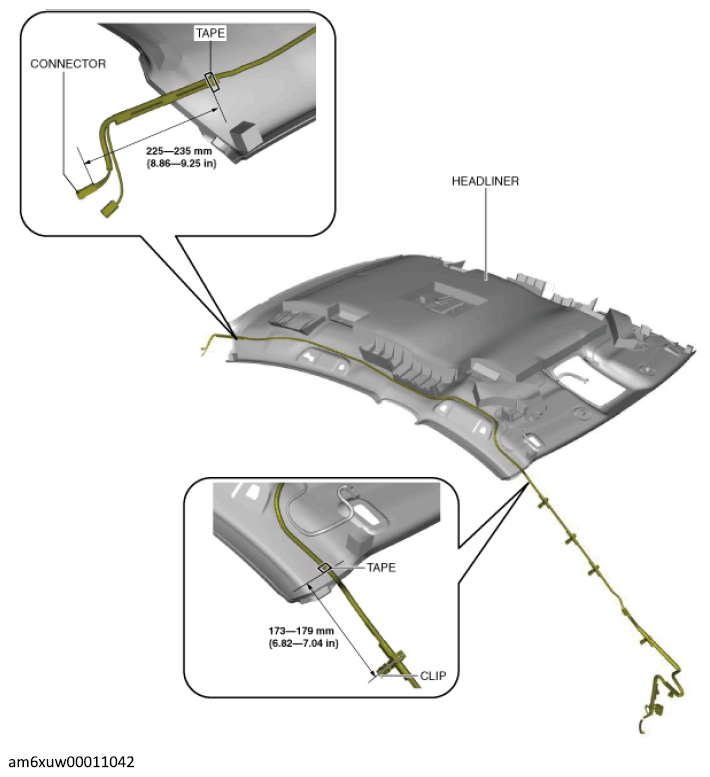

Fig 1: Checking Tape Fixing Area On Antenna Feeder - Without Sunroof
Courtesy of MAZDA MOTORS CORP.

With sunroof

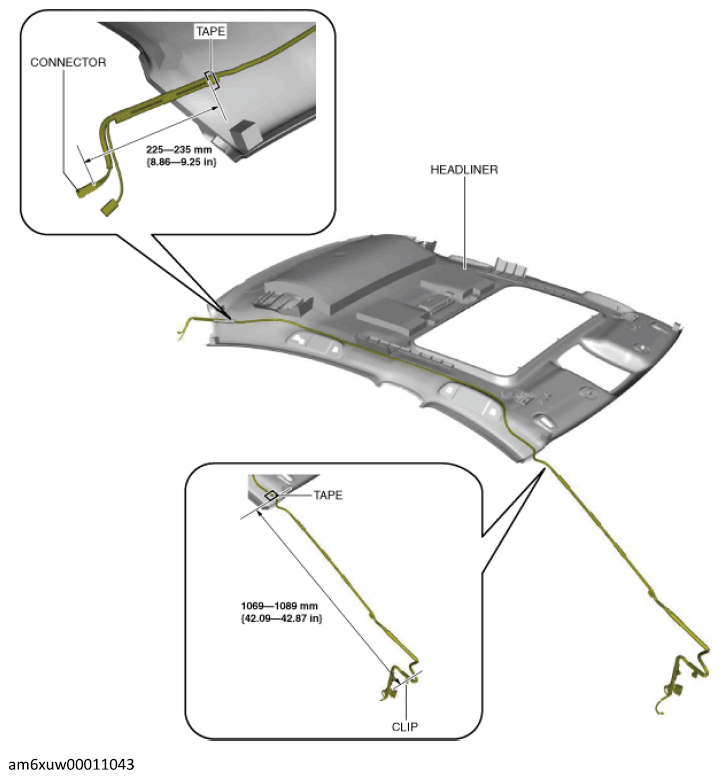

Fig 2: Checking Tape Fixing Area On Antenna Feeder - With Sunroof
Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
2. Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION .)
3. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
9. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
10. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
11. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
12. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
13. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
14. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
15. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
16. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
17. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
18. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
19. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
20. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
21. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
22. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
23. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
24. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
25. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
26. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
