Rear Console Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
2. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
Move the console panel in the order of arrows (1), (2) shown in the figure below, and remove it while detaching the hooks, clips.

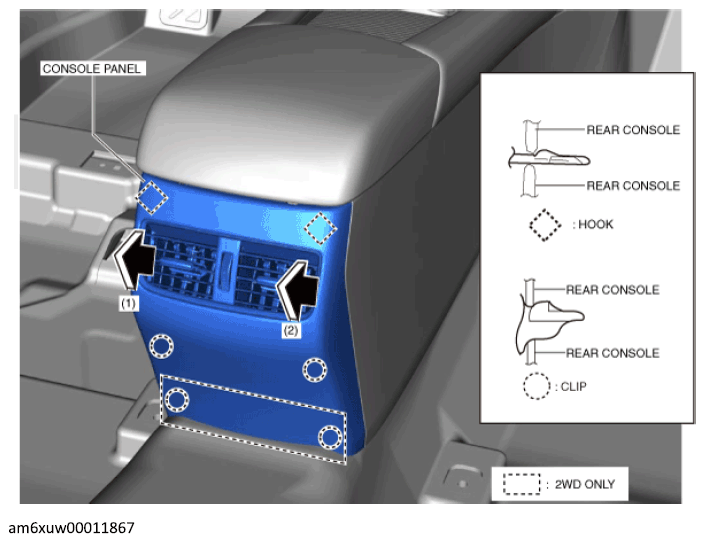

Fig 1: Moving Console Panel
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

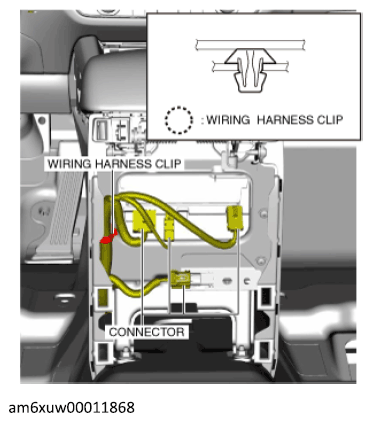

Fig 2: Wiring Harness Clip And Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clip.
Remove the cushion tape.

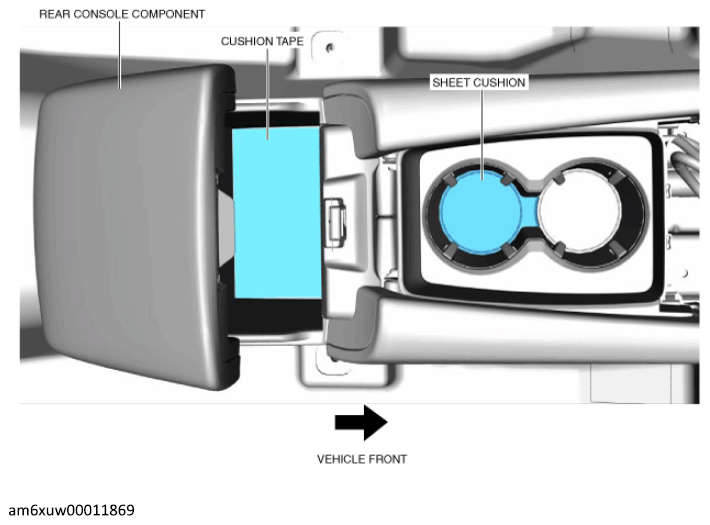

Fig 3: Rear Console Component, Cushion Tape And Sheet Cushion
Courtesy of MAZDA MOTORS CORP.
Remove the sheet cushion.
Remove the screws.

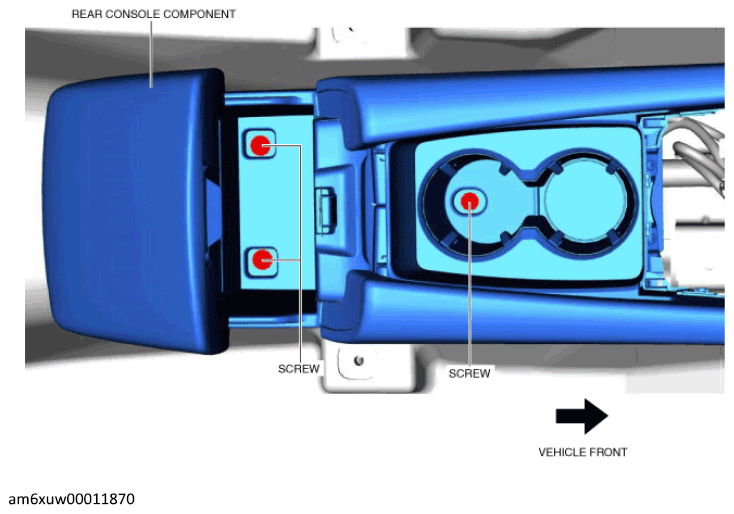

Fig 4: Rear Console Component And Screws
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.

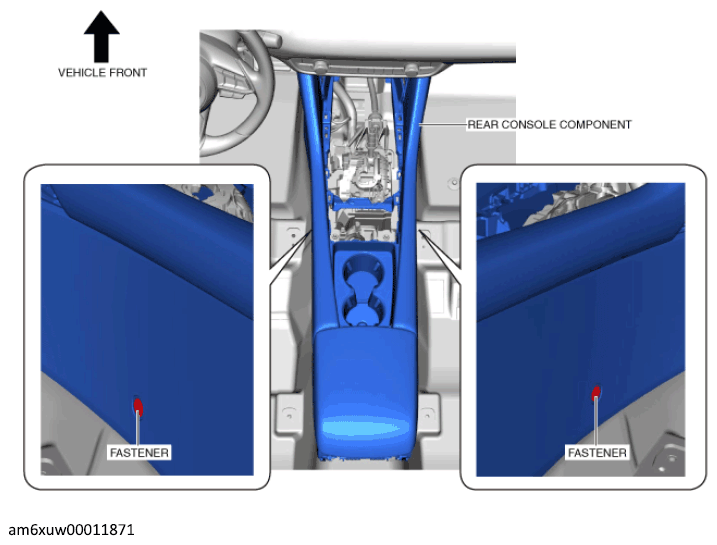

Fig 5: Rear Console Component And Fasteners
Courtesy of MAZDA MOTORS CORP.
Move the rear console component in the direction of the arrow shown in the figure below, detach the clips from the center lower panel, and remove the rear console component.

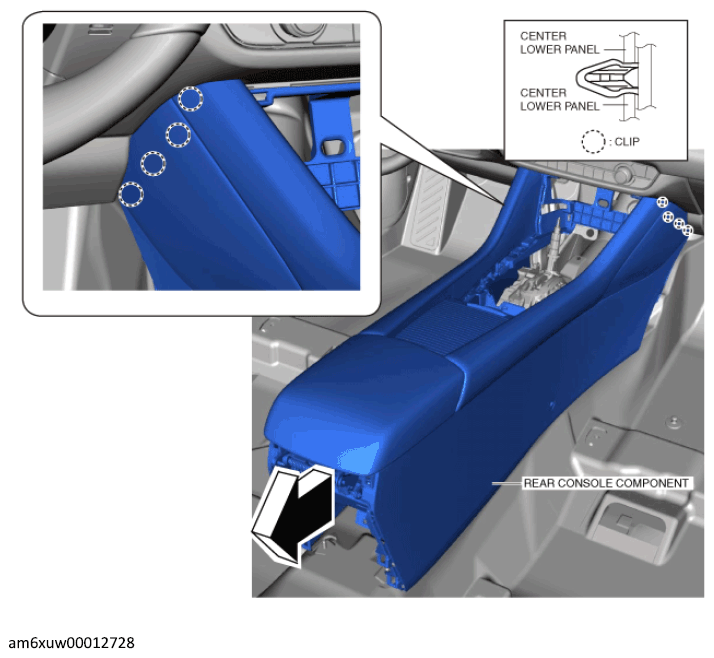

Fig 6: Moving Rear Console Component
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- When replacing the rear console, remove the upper panel component. (See UPPER PANEL REMOVAL/INSTALLATION .)
