Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    2. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)] .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    7. Lower anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    9. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    10. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    11. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    12. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    13. Rear console component (See REAR CONSOLE REMOVAL/INSTALLATION .)
    14. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    15. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    16. Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    17. Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
    18. SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    19. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    20. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Remove the wiring harness clips shown in the figure below.

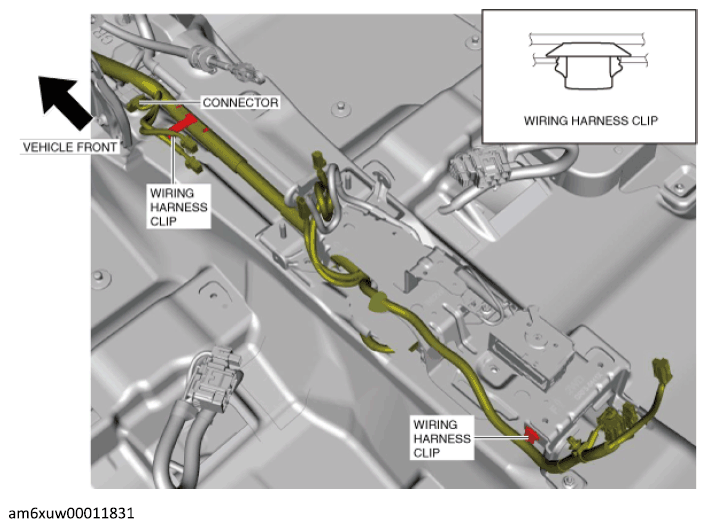

    Fig 1: Wiring Harness Clips And Connector
    G12236408Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the wiring harness clips shown in the figure below.

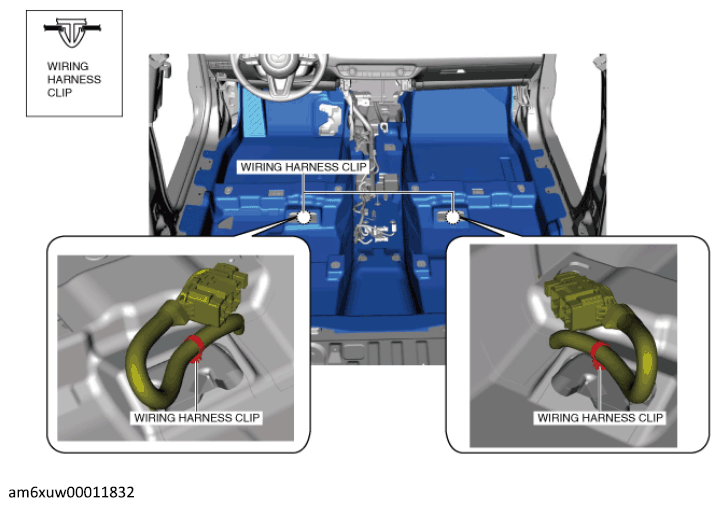

    Fig 2: Wiring Harness Clips
    G12236409Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.

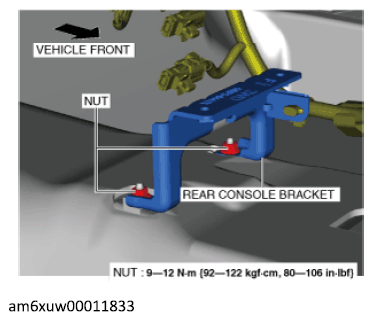

    Fig 3: Rear Console Bracket And Nuts With Torque Specification
    G12236410Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear console bracket.
  8. Remove the fasteners.

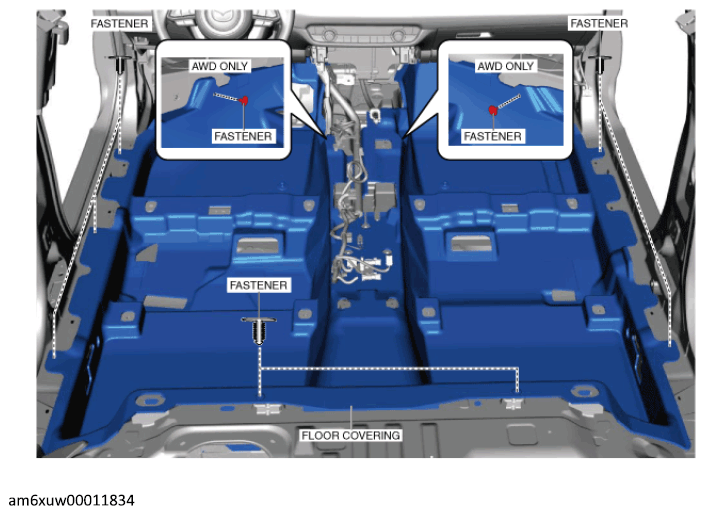

    Fig 4: Floor Covering And Fasteners
    G12236411Courtesy of MAZDA MOTORS CORP.
  9. Take the floor covering out from the door opening.
  10. Install in the reverse order of removal. (See Floor Covering Installation Note .)
