Center Panel Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION .)
2. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
Remove the screws.

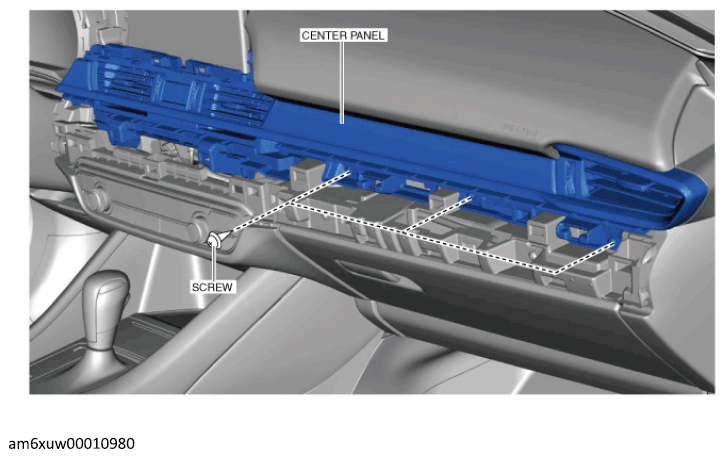

Fig 1: Center Panel And Screws
Courtesy of MAZDA MOTORS CORP.
Move the center panel in the order of arrows (1), (2), (3), and (4) shown in the figure below, and remove it while detaching the clips A, clips B.

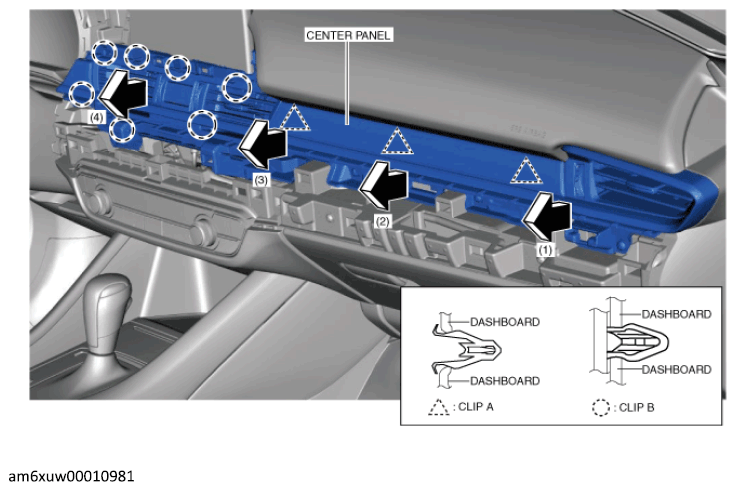

Fig 2: Moving Center Panel
Courtesy of MAZDA MOTORS CORP.
Disconnect the hazard switch connector.
Remove the center panel.
Install in the reverse order of removal.
NOTE:
- When replacing the center panel, remove the following parts:
  - Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
  - Side ventilator grille (passenger-side) (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
  - Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
