Audio Panel Removal/Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the meter hood cover. (See METER HOOD COVER REMOVAL/INSTALLATION .)

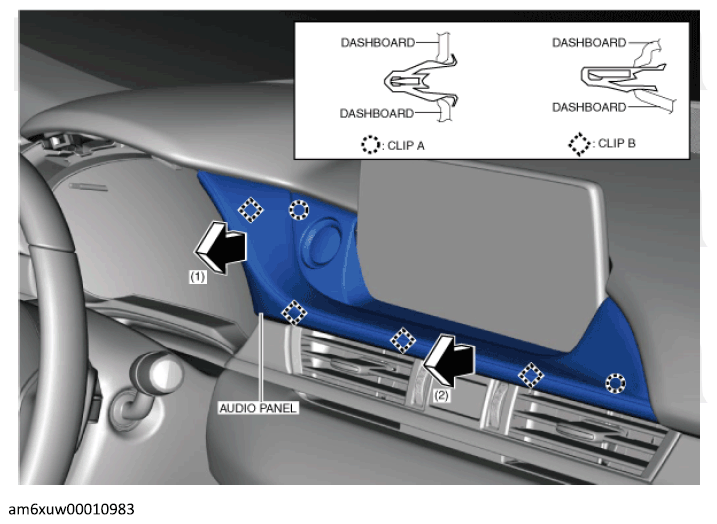

- Move the audio panel in the order of arrows (1), (2) shown in the figure below, and detach the clips A and clip B.
- Disconnect the push button start connector.
- Install in the reverse order of removal.
