Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not allow clutch fluid to get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, rinse with water immediately, then wipe the area dry.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [(VIN M) (US)] .)
    • Air cleaner cover
    • Air cleaner element
    • Fresh-air duct
    • Air cleaner case
    • Air hose
    • Resonance chamber
  3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .) (See BATTERY REMOVAL/INSTALLATION [(VIN M) (US)] .)
  4. Remove the battery tray and PCM component as a single unit. (See BATTERY REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .) (See BATTERY REMOVAL/INSTALLATION [(VIN M) (US)] .)
  5. Remove the clutch pedal using the following procedure. (See CLUTCH PEDAL INSTALLATION NOTE .)

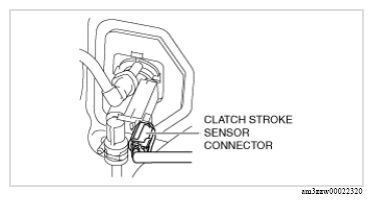

    1. Disconnect the clutch stroke sensor connector.
      G13176347Courtesy of MAZDA MOTORS CORP.
    2. Remove the bracket from the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    3. Remove the starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
    4. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
    5. Disconnect the clutch pipe No. 1 from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
    6. Disconnect the clutch reserve hose from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
    CAUTION:
    • When removing the insulator, completely detach the insulator tabs so as not to damage them. If the tabs are not completely detached, they may be damaged when the insulator is removed.
  7. Install in the reverse order of removal.
  8. Fully depress the clutch pedal, and verify that the engine starts.

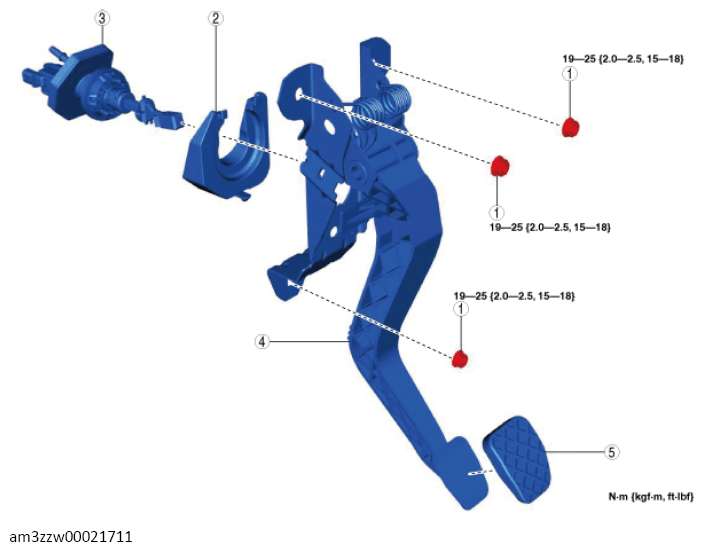

Fig 1: Clutch Pedal Components With Torque Specification
G13715273Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Nut
2 Insulator
(See INSULATOR INSTALLATION NOTE .)
3 Clutch master cylinder
(See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)
4 Clutch pedal
5 Pedal pad
