Insulator Installation Note

WARNING: This page is about a different variant/trim than selected.

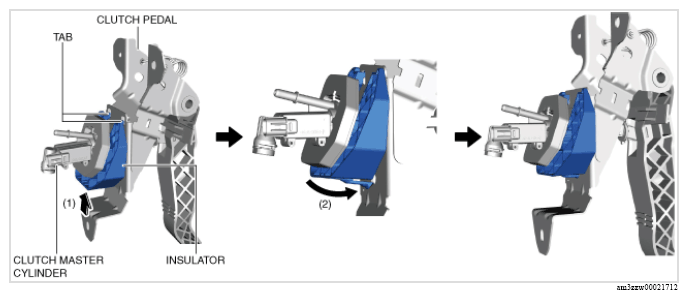

  1. Move the insulator in the direction of arrow (1) shown in the figure and hook the insulator tabs onto the clutch pedal.
    G13176349Courtesy of MAZDA MOTORS CORP.
  2. Press the insulator in the direction of arrow (2) shown in the figure and install the insulator.
  3. Verify that the insulator is securely installed.
