i-ACTIV AWD SYSTEM LOCATION INDEX

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

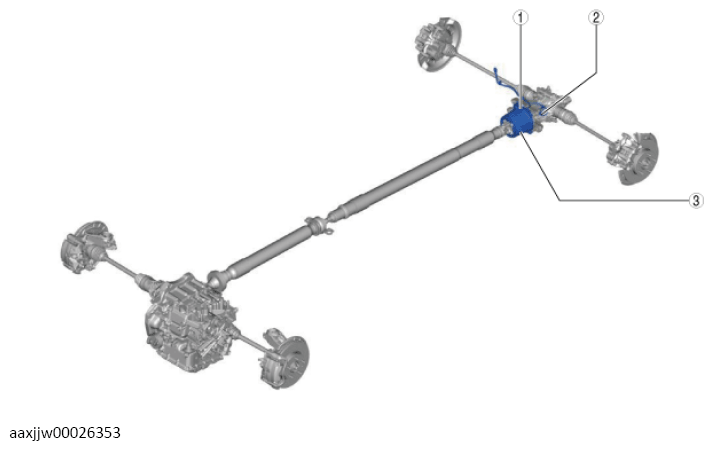

PART DESCRIPTION

1	AWD solenoid (See AWD SOLENOID INSPECTION .)
2	Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
3	Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION [(US)] .) (See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
