Differential Oil Temperature Sensor Removal/Installation

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Do not perform the procedure when the differential oil is at a high temperature. Otherwise, it could cause severe burns.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

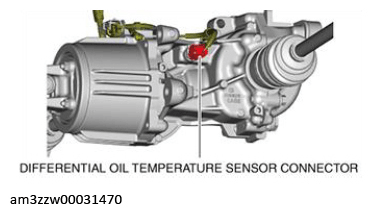

  2. Disconnect the differential oil temperature sensor connector.
    G13175993Courtesy of MAZDA MOTORS CORP.
  3. Remove the differential oil temperature sensor.

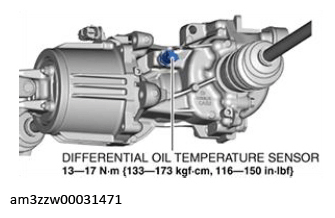

    Fig 1: Differential Oil Temperature Sensor With Torque Specification
    G13175994Courtesy of MAZDA MOTORS CORP.
  4. Install the differential oil temperature sensor.
  5. Connect the differential oil temperature sensor connector.
  6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
