Down Switch: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the screw.
    G13176961Courtesy of MAZDA MOTORS CORP.

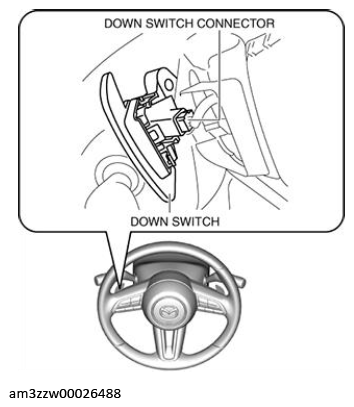

  3. Disconnect the down switch connector.
    G13176965Courtesy of MAZDA MOTORS CORP.
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Verify that the continuity between down switch component terminals A and B.
    G13716008Courtesy of MAZDA MOTORS CORP.
