Steering Shift Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the bolts.

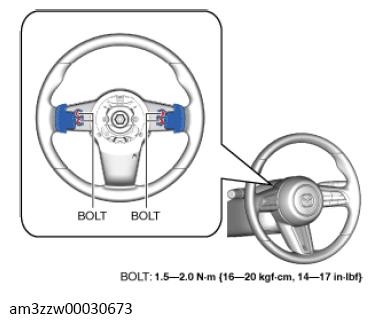

    Fig 1: Steering Shift Switch Bolts With Torque Specification
    G13558652Courtesy of MAZDA MOTORS CORP.
  3. Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.

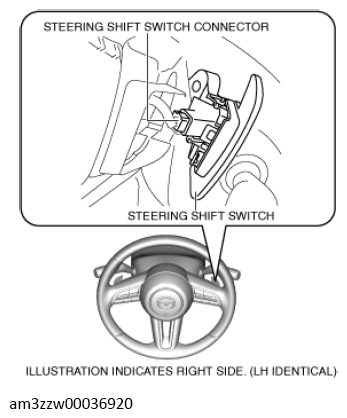

    G13715568Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the steering shift switch connector.
  5. Remove the steering shift switch.

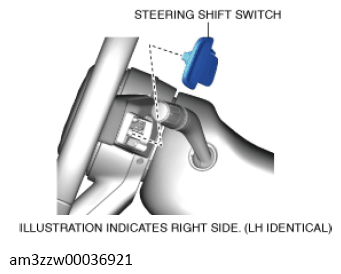

    G13715569Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
