Set Plate Removal/Installation

  1. Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the bolts.

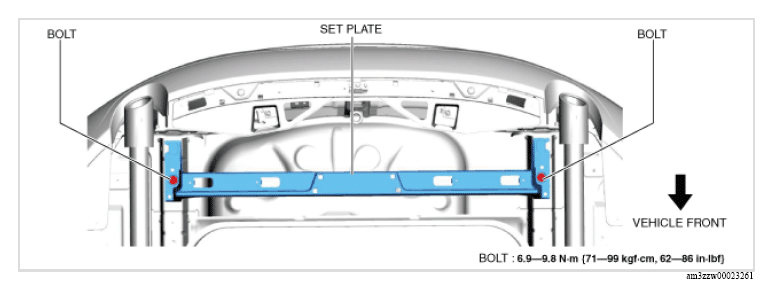

    Fig 1: Set Plate Bolts With Torque Specification
    G13178543Courtesy of MAZDA MOTORS CORP.

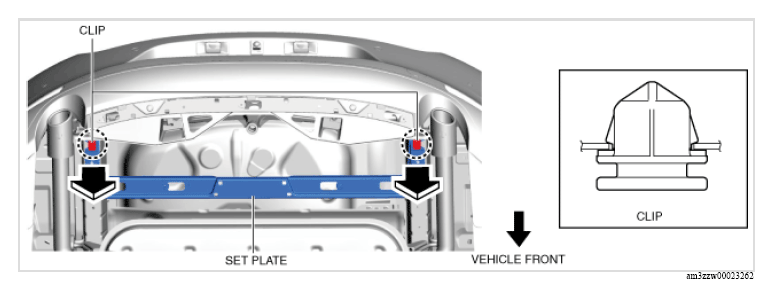

  3. Pull the set plate in the direction of the arrows shown in the figure while detaching the clips.
    G13178544Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
