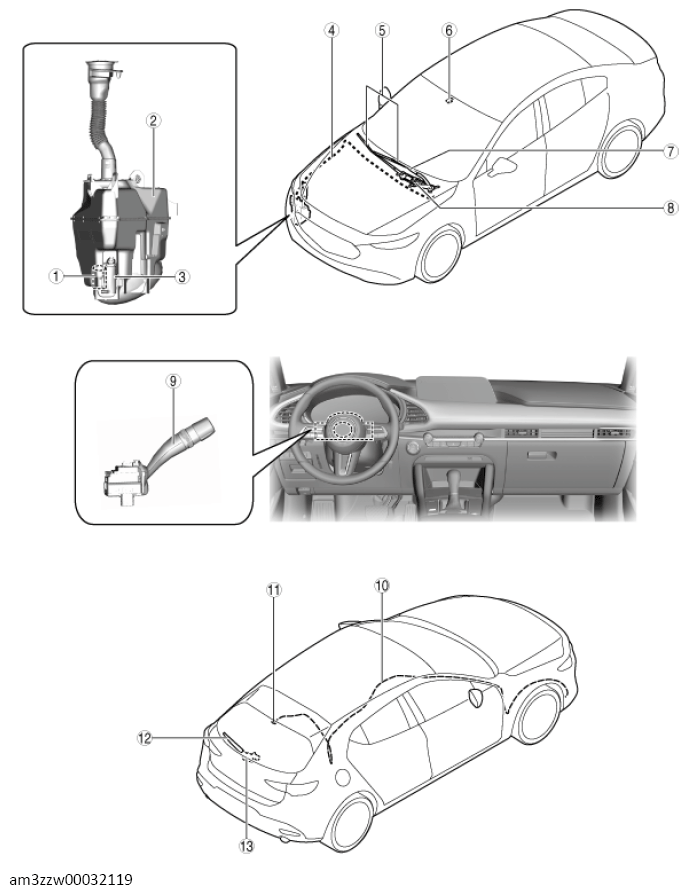

| 1 |
Washer fluid-level sensor (with washer fluid-level sensor)
(See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
(See WASHER FLUID-LEVEL SENSOR INSPECTION .) |
| 2 |
Washer tank
(See WASHER TANK REMOVAL/INSTALLATION .) |
| 3 |
Washer motor
(See WASHER MOTOR REMOVAL/INSTALLATION .)
(See WASHER MOTOR INSPECTION .) |
| 4 |
Windshield washer hose
(See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION (US) .) |
| 5 |
Windshield washer nozzle
(See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .)
(See WINDSHIELD WASHER NOZZLE ADJUSTMENT .) |
| 6 |
Rain sensor
(See RAIN SENSOR REMOVAL/INSTALLATION .)
(See RAIN SENSOR INSPECTION .) |
| 7 |
Windshield wiper arm and blade
(See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER BLADE AND RUBBER REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER ARM AND BLADE INITIAL SETTING .) |
| 8 |
Windshield wiper motor and link
(See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER MOTOR AND LINK INSPECTION .) |
| 9 |
Wiper and washer switch
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
(See WIPER AND WASHER SWITCH INSPECTION (US) .) |
| 10 |
Rear washer hose (Hatchback-5HB)
(See REAR WASHER HOSE REMOVAL/INSTALLATION (US) .) |
| 11 |
Rear washer nozzle (Hatchback-5HB)
(See REAR WASHER NOZZLE REMOVAL/INSTALLATION .)
(See REAR WASHER NOZZLE ADJUSTMENT .) |
| 12 |
Rear wiper arm and blade (Hatchback-5HB)
(See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION (US) .)
(See REAR WIPER ARM AND BLADE ADJUSTMENT .) |
| 13 |
Rear wiper motor (Hatchback-5HB)
(See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
(See REAR WIPER MOTOR INSPECTION .) |
