Rear Washer Nozzle Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the litigate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)

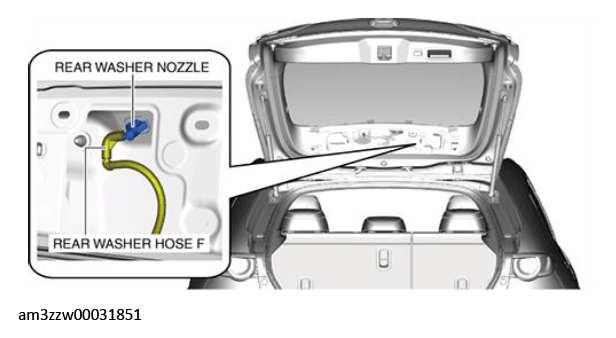

- Disconnect the rear washer hose F from the rear washer nozzle.

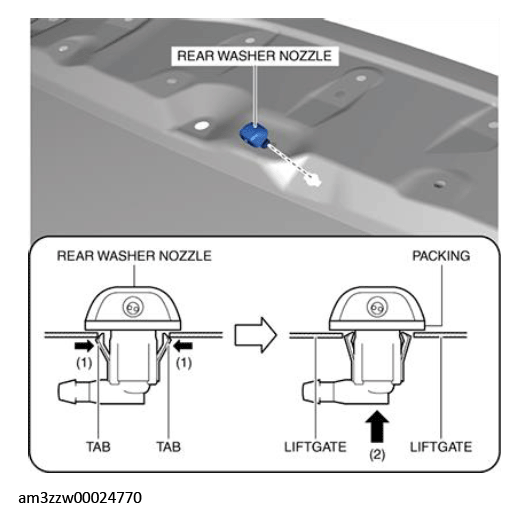

- Press out the rear washer nozzle in the direction of the arrow (2) shown in the figure while pressing the rear washer nozzle tabs in the direction of the arrows (1) shown in the figure.
- Remove the rear washer nozzle.
- Install in the reverse order of removal.
