Refrigerant Pressure Sensor Inspection (Auto A/C)

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION .)
Verify the high-pressure side reading of the manifold gauge.
Measure the terminal voltage at PCM terminal 2AZ, 2AV and 2AI.

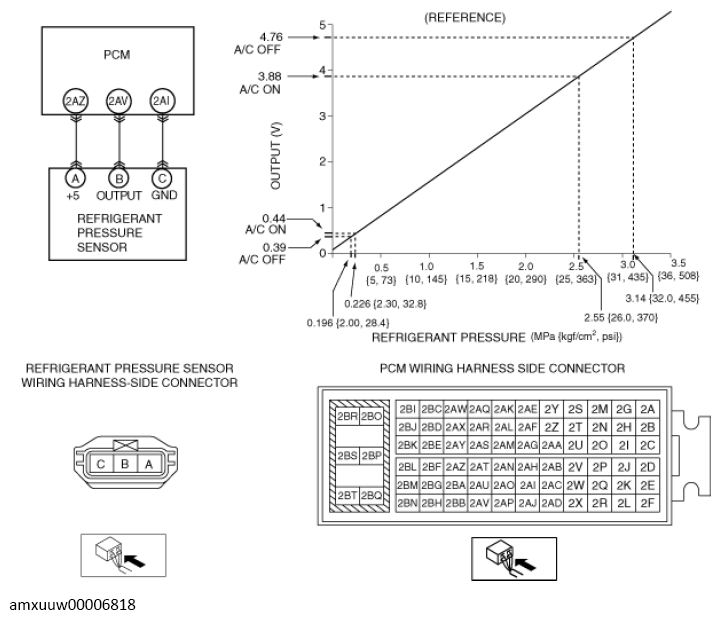

Using the graph below, measure and verify the terminal voltages at 2AV.
Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-G 2.0] .)
- Terminal 2AZ: Approx. 5 V (Ignition switch ON)
- Terminal 2AI: 1.0 V or less
  - If each voltage is not normal, inspect the related wiring harness.
  - If there is any malfunction, replace the related wiring harness.
  - If the wiring harness is normal, replace the refrigerant pressure sensor. (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
