Refrigerant Pressure Sensor Removal/Installation (Auto A/C)
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
- Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Remove the air cleaner, air hose and resonance chamber No. 1 as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)

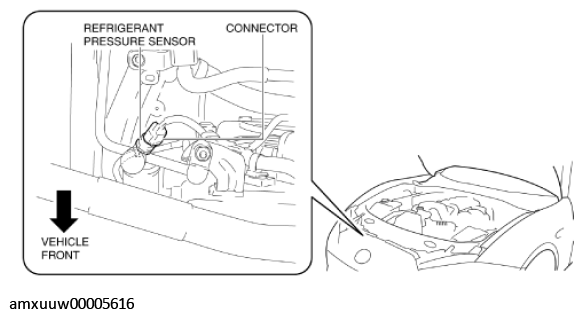

- Disconnect the connector.CAUTION:
- If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

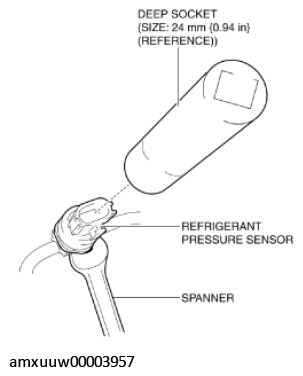

- Secure the connection part of the refrigerant pressure sensor using a spanner, and remove the refrigerant pressure sensor using a deep socket (24 mm {0.94 in} size (reference)) or an equivalent.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
