Center Display Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    5. Center panel No. 2 (See CENTER PANEL No. 2 REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)

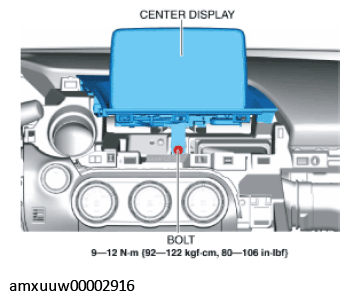

  3. Remove the bolt.
    Fig 1: Center Display Bolt With Torque Specification
    G11274706Courtesy of MAZDA MOTORS CORP.

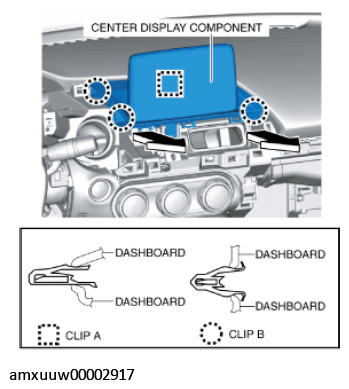

  4. Pull the center display component in the direction of the arrows shown in the figure and detach the center display clips A and B from the dashboard.
    G11274707Courtesy of MAZDA MOTORS CORP.

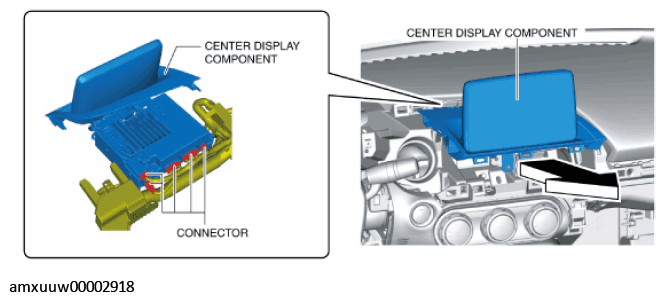

  5. Pull out the center display component in the direction of the arrow shown in the figure and disconnect it.
    G11274708Courtesy of MAZDA MOTORS CORP.
  6. Remove the center display component.
  7. Remove the connectivity master unit (CMU) when replacing the center display. (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  8. Install in the reverse order of removal.
