Front Turn Light Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
  2. Partially peel back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION )
  3. Remove the front fog light. (See FRONT FOG LIGHT REMOVAL/INSTALLATION )
  4. Remove the front turn light short cord. (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION )
  5. Remove the screws.

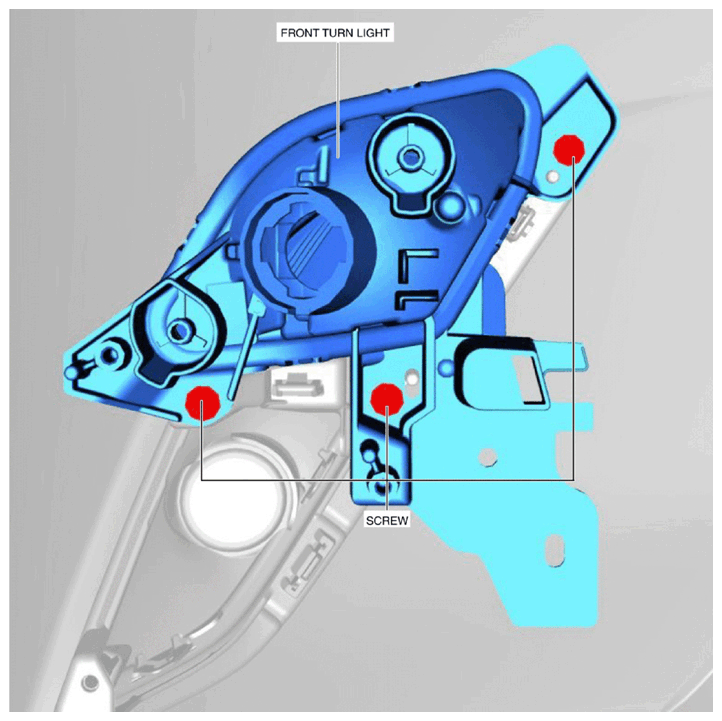

    Fig 1: Identifying Front Turn Light And Screws
    G10914884Courtesy of MAZDA MOTORS CORP.
  6. Pull the front turn light from the pins and remove it.

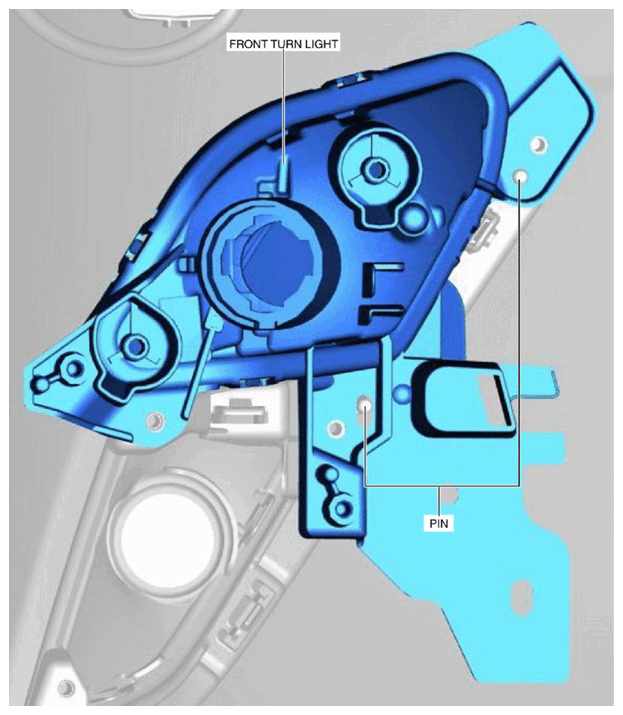

    Fig 2: Identifying Front Turn Light And Pins
    G10914885Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
