Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
Partially peel back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION )
Disconnect the connector.

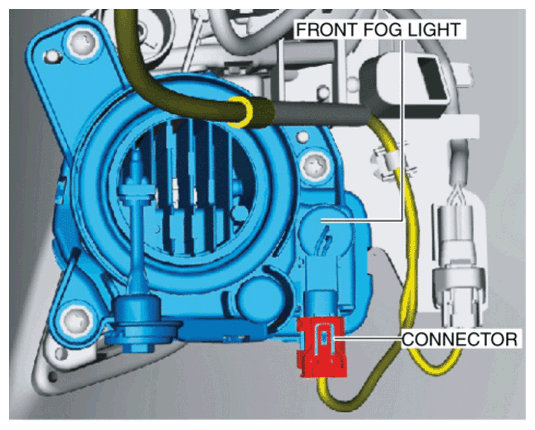

Fig 1: Identifying Front Fog Light And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

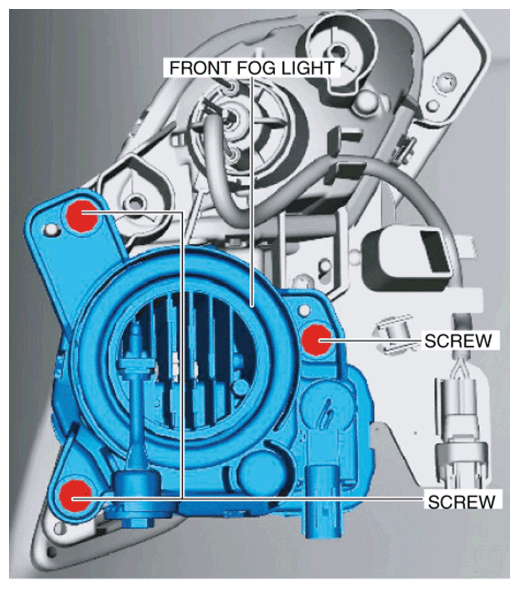

Fig 2: Identifying Front Fog Light And Screws
Courtesy of MAZDA MOTORS CORP.
Remove the front fog light.
Install in the reverse order of removal.
Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING )
