Interior Trim Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

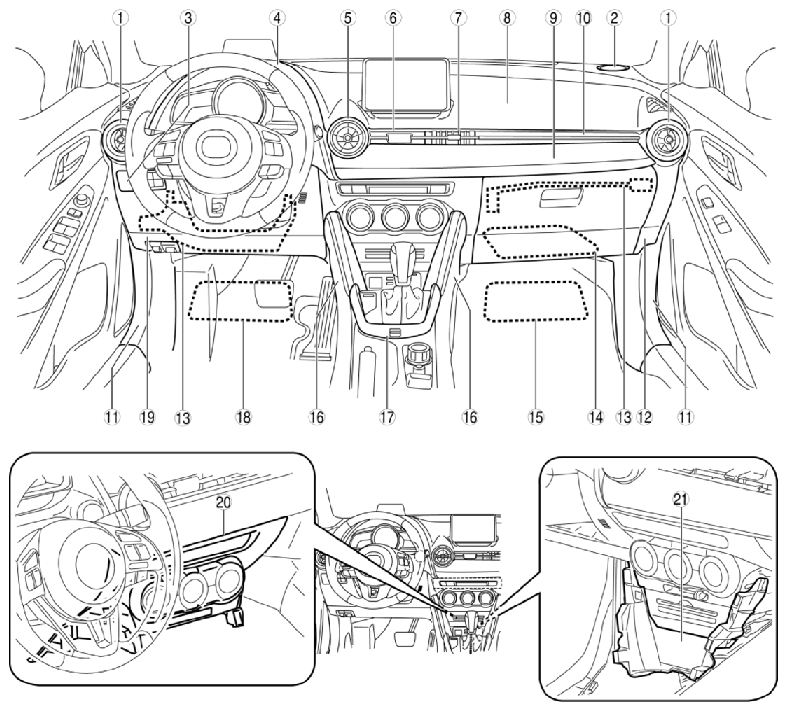

Fig 1: Interior Trim Related Components

Courtesy of ABLE BODY CORP.

COMPONENT DESCRIPTION

1	Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
2	Tweeter hole cover (See TWEETER HOLE COVER REMOVAL/INSTALLATION .)
3	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
4	Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
5	Center ventilator grille No. 2 (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
6	Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
7	Center ventilator grille No. 1 (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
8	Dashboard (See DASHBOARD REMOVAL .) (See DASHBOARD INSTALLATION .) (See DASHBOARD DISASSEMBLY/ASSEMBLY .)
9	Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
10	Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
11	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
12	Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
13	Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
14	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
15	Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION .)
16	Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .) (See CONSOLE SIDE PANEL DISASSEMBLY/ASSEMBLY .)
17	Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
18	Heel cushion (See HEEL CUSHION REMOVAL/INSTALLATION .)
19	Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
20	Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)
21	Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)

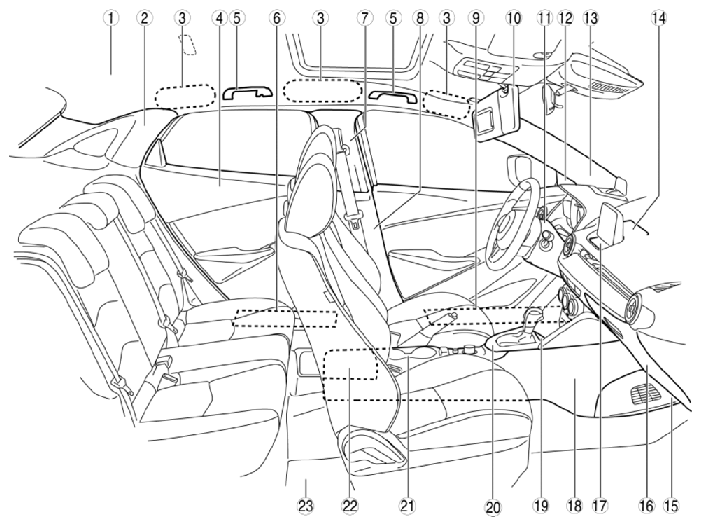

Fig 2: Identifying Interior Trim Related Components

Courtesy of ABLE BODY CORP.

COMPONENT DESCRIPTION

1	Headliner (See HEADLINER REMOVAL/INSTALLATION .)
2	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3	Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION .)
4	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
5	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
9	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
10	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
11	Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
12	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
13	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
14	Audio panel No. 1 (See AUDIO PANEL No. 1 REMOVAL/INSTALLATION .)
15	Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
16	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
17	Audio panel No. 2 (See AUDIO PANEL No. 2 REMOVAL/INSTALLATION .)
18	Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
19	Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
20	Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
21	Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
22	Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
23	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION .)

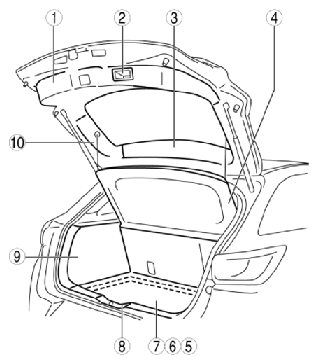

Fig 3: Interior Trim Related Components

Courtesy of ABLE BODY CORP.

COMPONENT DESCRIPTION

1	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
2	Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
3	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
4	Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
5	Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
6	Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
7	Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
8	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
9	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
10	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
