Decoration Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove compartment. (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the center panel. (Refer to CENTER PANEL REMOVAL/INSTALLATION .)
Remove the screws.

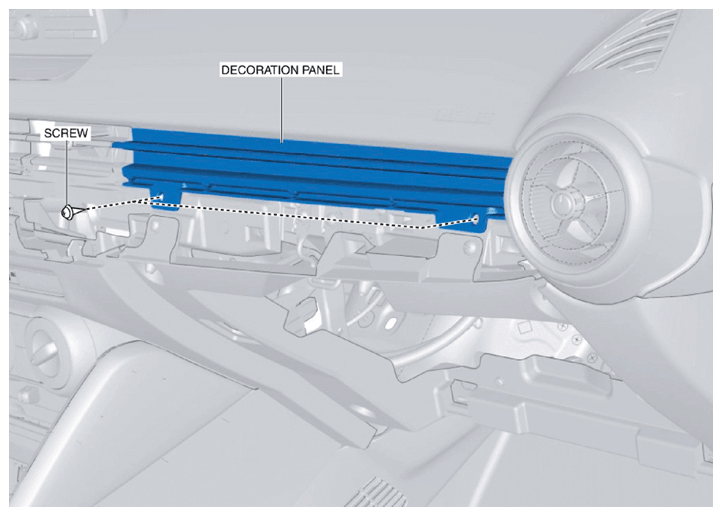

Fig 1: Identifying Decoration Panel And Screw
Courtesy of ABLE BODY CORP.
Insert your hand from the glove compartment opening and while pressing the tabs of clips A and B, move the remover tool in the order of arrows (1) and (2) and detach clips A and B from the dashboard.

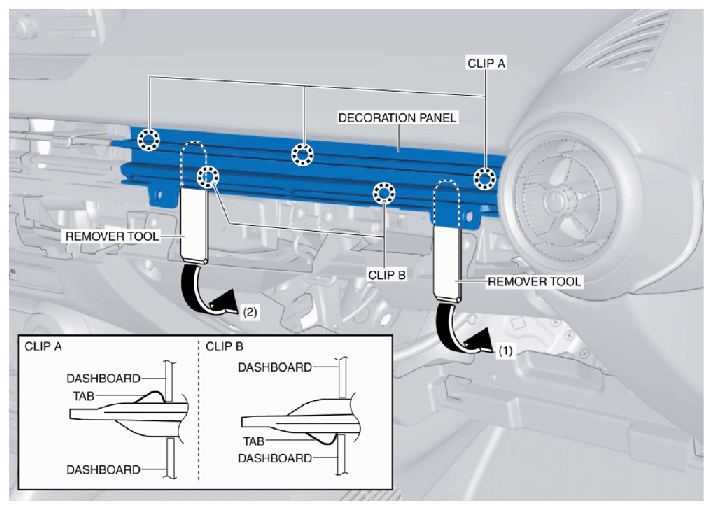

Fig 2: Detaching Clips A And B From Dashboard
Courtesy of ABLE BODY CORP.
Remove the decoration panel.
Install in the reverse order of removal.
