Starting System Location Index

WARNING: This page is about a different variant/trim than selected.

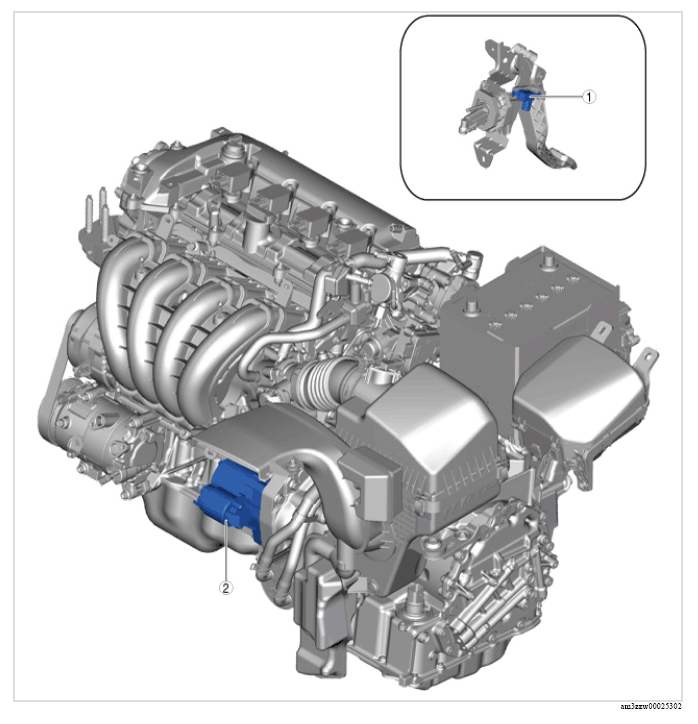

G13175379Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Starter interlock switch (MTX)
(See STARTER INTERLOCK SWITCH INSPECTION )
2 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
