Starter Disassembly/Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

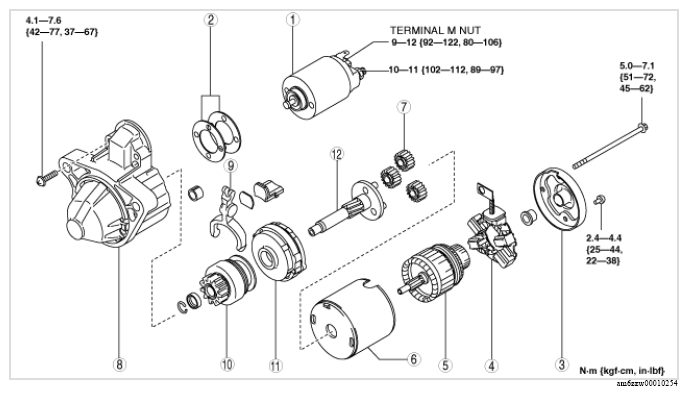

    Fig 1: Exploded View Of Starter Components With Torque Specification
    G13175358Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Magnetic switch
    2 Adjustment washer
    3 Rear housing
    4 Brush and brush holder
    5 Armature
    6 Yoke
    7 Planetary gear
    8 Front cover
    9 Lever
    10 Drive pinion
    11 Internal gear
    12 Gear shaft
