Engine compartment side

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

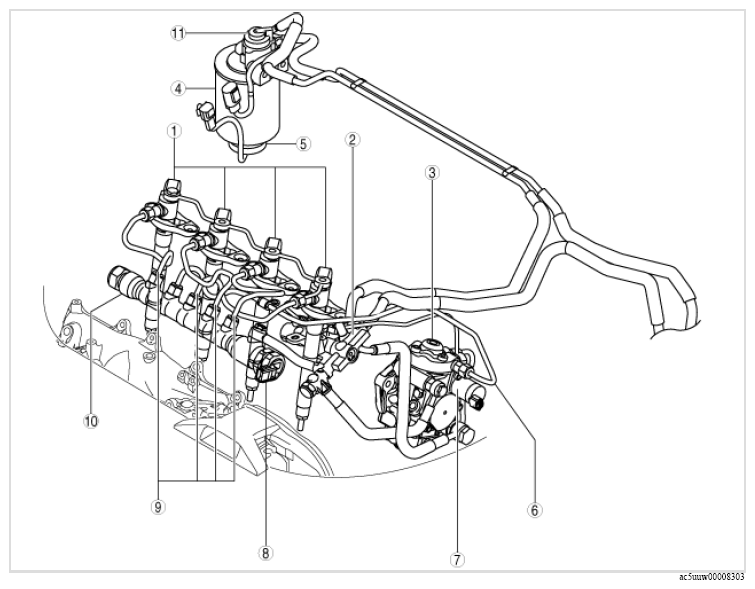

COMPONENT DESCRIPTION

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION .) (See FUEL INJECTOR INSPECTION .)
2	Lower case (See LOWER CASE REMOVAL/INSTALLATION .) (See FUEL CHECK VALVE REMOVAL/INSTALLATION .) (See FUEL CHECK VALVE INSPECTION .) (See FUEL FEED VALVE REMOVAL/INSTALLATION .) (See FUEL FEED VALVE INSPECTION .)
3	Supply pump (See SUPPLY PUMP REMOVAL/INSTALLATION .) (See SUPPLY PUMP INSPECTION .)
4	Fuel filter (See FUEL FILTER REMOVAL/INSTALLATION .) (See FUEL FILTER INSPECTION .)
5	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION .)
6	Injection pipe (supply pump side) (See INJECTION PIPE REMOVAL/INSTALLATION .)
7	Suction control valve (See SUCTION CONTROL VALVE REMOVAL/INSTALLATION .) (See SUCTION CONTROL VALVE INSPECTION .)
8	Fuel pressure relief valve (See FUEL PRESSURE RELIEF VALVE REMOVAL/INSTALLATION .) (See FUEL PRESSURE RELIEF VALVE INSPECTION .)
9	Injection pipe (fuel injector side) (See INJECTION PIPE REMOVAL/INSTALLATION .)
10	Common rail (See COMMON RAIL REMOVAL/INSTALLATION .) (See COMMON RAIL INSPECTION .)
11	Fuel warmer (See FUEL FILTER REMOVAL/INSTALLATION .) (See FUEL WARMER INSPECTION .)
