Front Combination Light Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

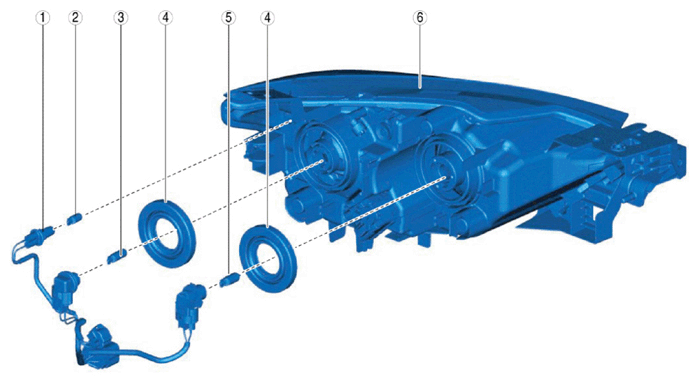

    Fig 1: Front Combination Light Related Components (1 Of 2)
    G10914862Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Front side marker light bulb (see FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
    3 Headlight LO bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    4 Cover
    (See Cover Installation Note .)
    5 Headlight HI bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    6 Front combination light

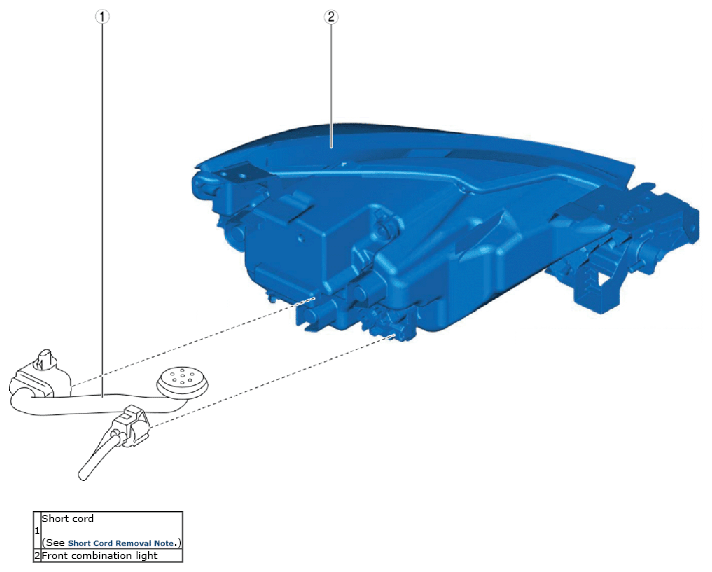

    Fig 2: Front Combination Light Related Components (2 Of 2)
    G10914863Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short cord
    (See Short Cord Removal Note .)
    2 Front combination light
  2. Assemble in the reverse order of disassembly.
