Cover Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If there is a gap between the housing and the cover, water may penetrate through the gap, causing an electrical shock, short circuit, fogging or condensation inside the front combination light. Verify that there is no gap between the cover and the housing.
  1. Install the cover to the housing so that there is no gap between the housing and the cover.

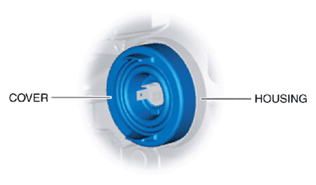

    Fig 1: Identifying Cover And Housing
    G10914865Courtesy of MAZDA MOTORS CORP.
