Intake Air Guide Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

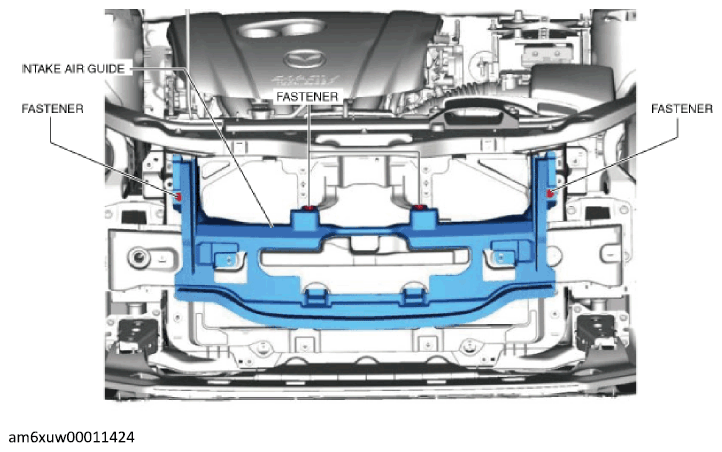

Remove the fasteners.

Fig 1: Fasteners
Courtesy of MAZDA MOTORS CORP.

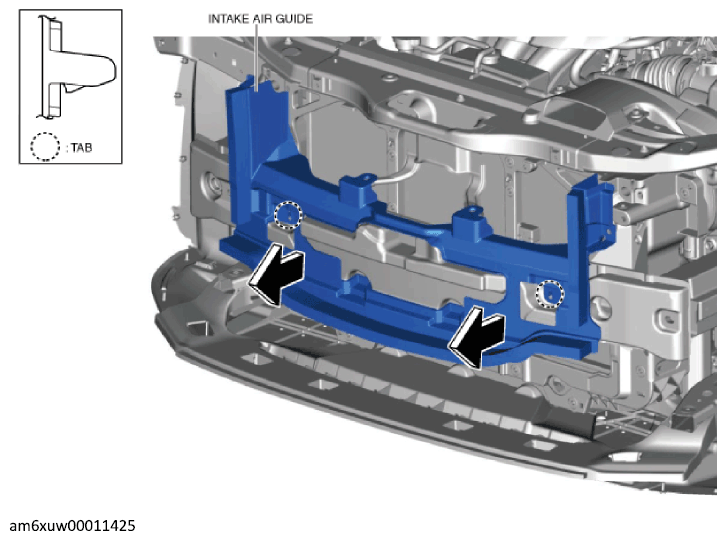

Remove the intake air guide in the direction of the arrows shown in the figure below while detaching the tabs.

Fig 2: Intake Air Guide In Direction
Courtesy of MAZDA MOTORS CORP.
NOTE:

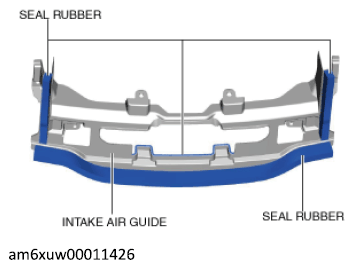

- When replacing the intake air guide, remove the seal rubbers.
Fig 3: Seal Rubbers
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
