Set Plate Removal/Installation
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fasteners.
Courtesy of MAZDA MOTORS CORP.

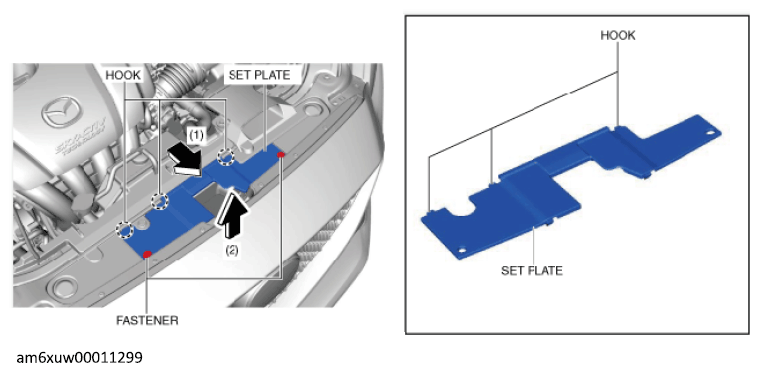

- Pull the set plate in the direction of the arrows in the order of (1), (2) and remove it while detaching the hooks.
- Install in the reverse order of removal.
