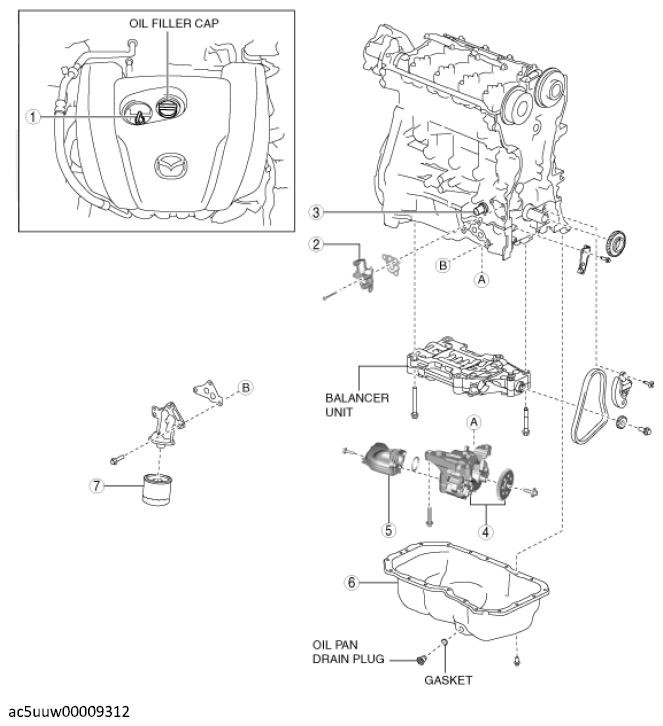

Lubrication System Location Index
COMPONENT DESCRIPTION
| 1 | Dipstick (See Engine Oil Level Inspection .) (See Engine Oil Replacement .) |
| 2 | Engine oil solenoid valve (See Engine Oil Solenoid Valve Removal/Installation .) (See Engine Oil Solenoid Valve Inspection .) |
| 3 | Engine oil temperature sensor/engine oil pressure sensor (See Oil Pressure Inspection .) |
| 4 | Oil pump component (See Oil Pump Removal/Installation .) |
| 5 | Oil strainer (See Oil Pump Removal/Installation .) |
| 6 | Oil pan (See Oil Pan Removal/Installation .) |
| 7 | Oil filter (See Oil Filter Replacement .) |
