Engine Oil Replacement
REPLACEMENT PART DESCRIPTION
| Gasket Quantity: 1 Location of use: Oil pan drain plug |
OIL AND CHEMICAL TYPE
| Engine oil Type: Recommended oil |
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
CAUTION:
- If engine oil is spilled on the exhaust system, wipe it off completely. If you fail to wipe the spilled engine oil, it will produce fumes because of the heat.
- Position the vehicle on level ground.
- Remove the oil filler cap.

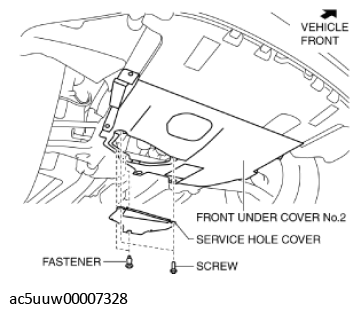

- Remove the service hole cover (installed to front under cover No. 2) used to drain the engine oil.
- Remove the oil pan drain plug.
- Drain the engine oil into a container.
- Install the oil pan drain plug with a new gasket.
Oil pan drain plug tightening torque
30-41 N.m {3.1-4.1 kgf.m, 23-30 ft.lbf}
- Refill with the following type and amount of engine oil.ENGINE OIL SPECIFICATION
Engine oil grade Engine oil viscosity 0W-20 Engine oil capacity (approx. quantity)
Oil replacement: 4.3 L {4.5 US qt, 3.8 lmp qt}
Oil and oil filter replacement: 4.5 L {4.8 US qt, 4.0 lmp qt}
Total (dry engine): 5.5 L {5.8 US qt, 4.8 Imp qt}
- Install the oil filler cap.
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.
- Inspect the oil level. (See Engine Oil Level Inspection .)
- Install the service hole cover.
- If the engine oil maintenance monitor function is set on, reset the engine oil data. (See Engine Oil Data Reset .)
