DSC Location Index

Vehicle Front Side

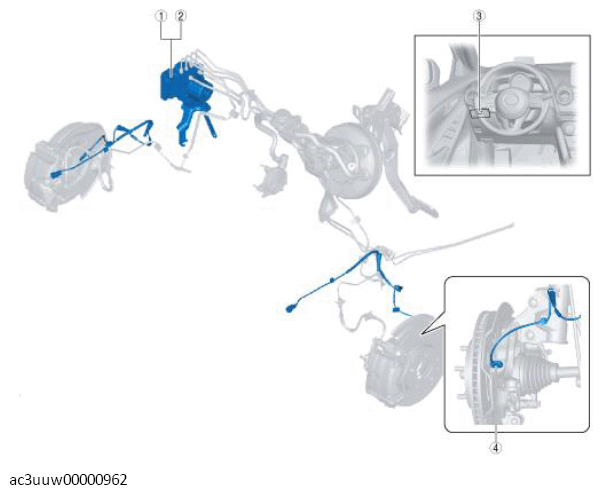

Fig 1: DSC Location Index - Vehicle Front Side

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) (See DSC HU/CM INSPECTION .)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
3	TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION .) (See TCS OFF SWITCH INSPECTION .)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION .)

Vehicle Rear Side

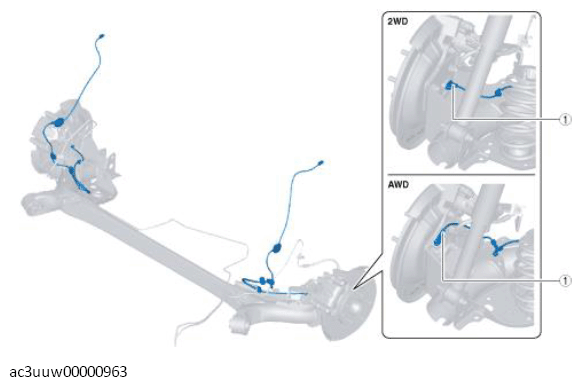

Fig 2: DSC Location Index - Vehicle Rear Side (Without Electric Parking Brake)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION .)

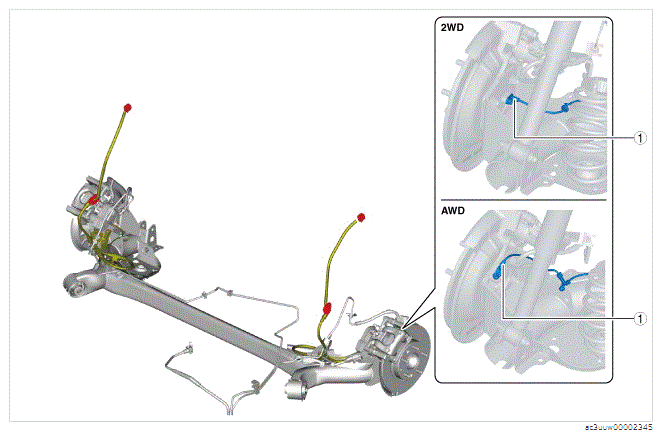

Fig 3: DSC Location Index - Vehicle Rear Side (With Electric Parking Brake)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION .)
