360° View Monitor System Screen Display Verification Procedure

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the preparation before servicing. (See PREPARATION BEFORE SERVICING .)
  2. Position the white lines at the positions shown in the figure.

    If all the cameras are verified

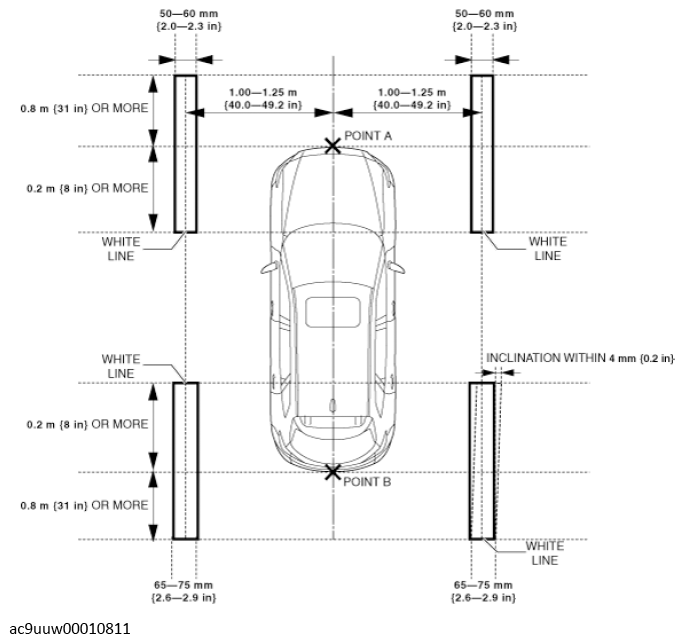

    Fig 1: Positioning White Lines At Positions (All Cameras Verified)
    G12265229Courtesy of MAZDA MOTORS CORP.

    If the front camera is verified

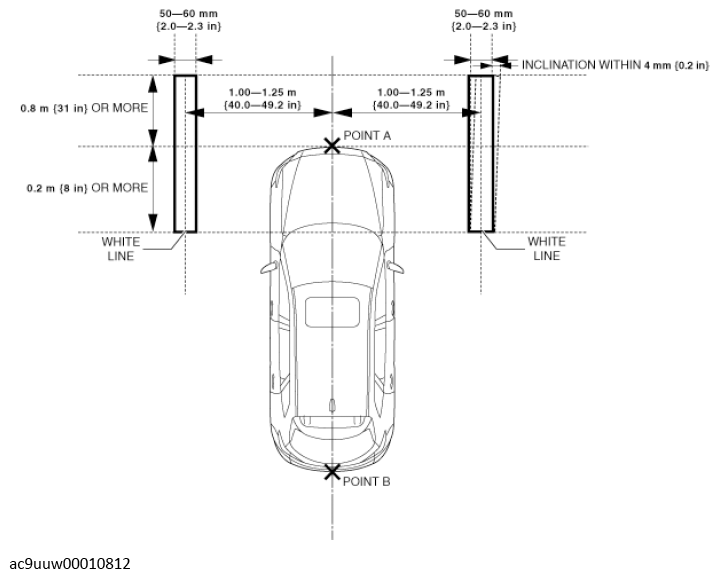

    Fig 2: Positioning White Lines At Positions (Front Camera Verified)
    G12265230Courtesy of MAZDA MOTORS CORP.

    If the side camera is verified

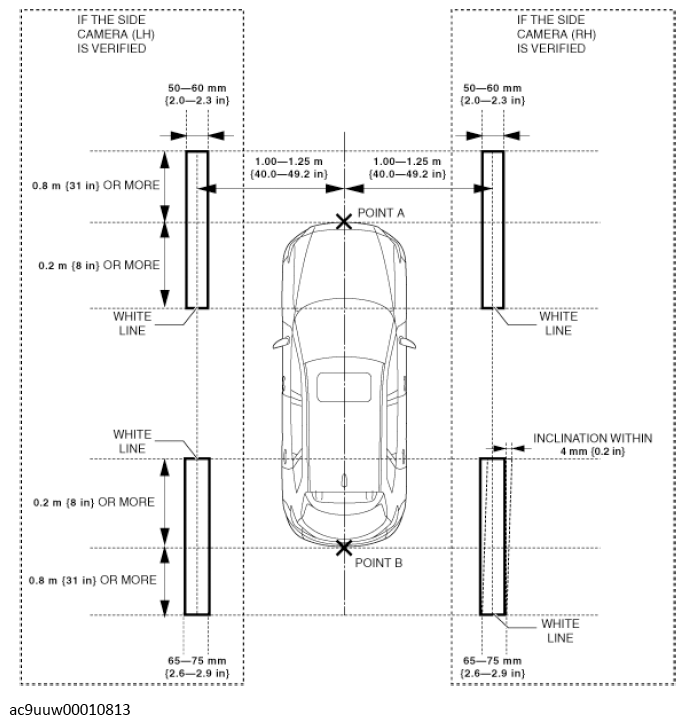

    Fig 3: Positioning White Lines At Positions (Side Camera Verified)
    G12265231Courtesy of MAZDA MOTORS CORP.

    If the rear mount camera is verified

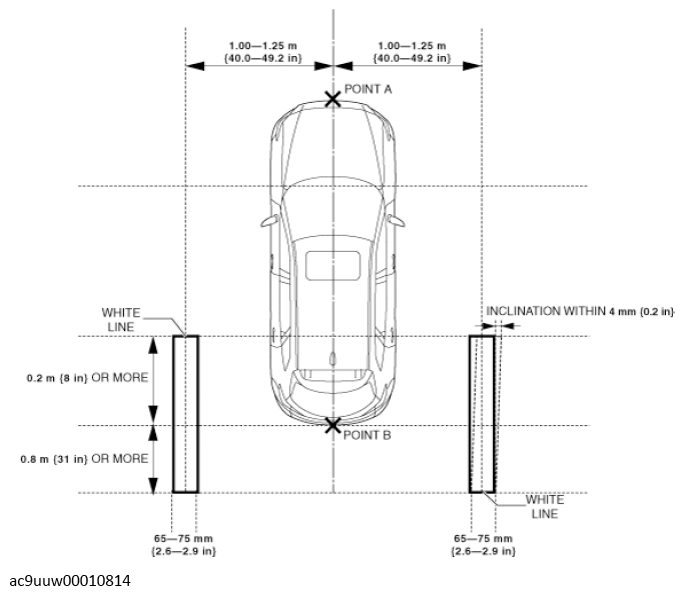

    Fig 4: Positioning White Lines At Positions (Rear Mount Camera Verified)
    G12265232Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use paper of 10 mm {0.39 in} thickness or less, or tape for the white lines.
  3. Verify that all the doors (front door, rear door) and the liftgate are closed.
  4. Verify that the outer mirrors are unfolded.
  5. Switch the ignition ON (engine off or on).
  6. Display the screen of the 360° view monitor system in the center display by pressing the 360° view monitor switch.
    NOTE:
    • If the projected vehicle path indication (yellow line) obscures the white lines, uncheck the check mark in the guide line display setting to turn the projected vehicle path indication off.

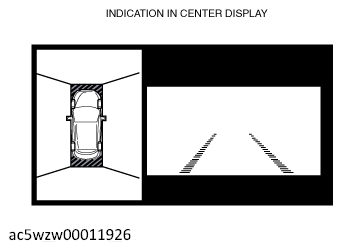

    Fig 5: Checking Mark In Guide Line Display
    G12183284Courtesy of MAZDA MOTORS CORP.
  7. Verify that there are no breaks in the seams of the white lines in the display screen of the center display.
    • If there are no breaks in the seams of the white lines, the 360° view monitor system aiming is completed.
    • If there are breaks in the seams of the white lines, perform the aiming procedure. (See SELECTION OF PROCEDURE FOR 360° VIEW MONITOR SYSTEM AIMING .)
    • If the white lines cannot be found, a position has deviated, or the seams of the white lines lean largely to one side, return to Step  2 and verify the white line position.

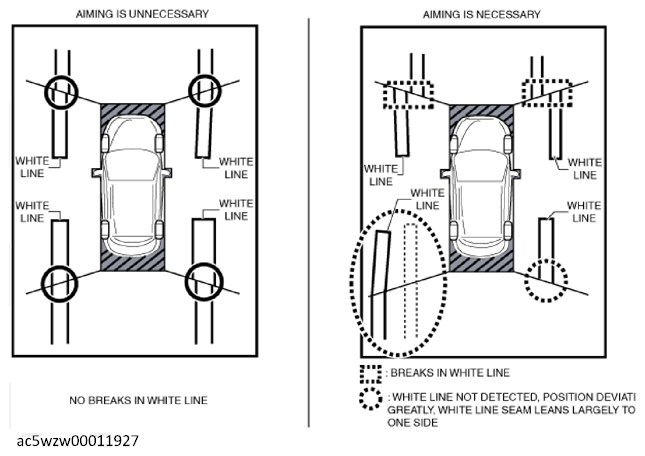

    Fig 6: 360° View Monitor System Aiming White Line Position
    G12183285Courtesy of MAZDA MOTORS CORP.
